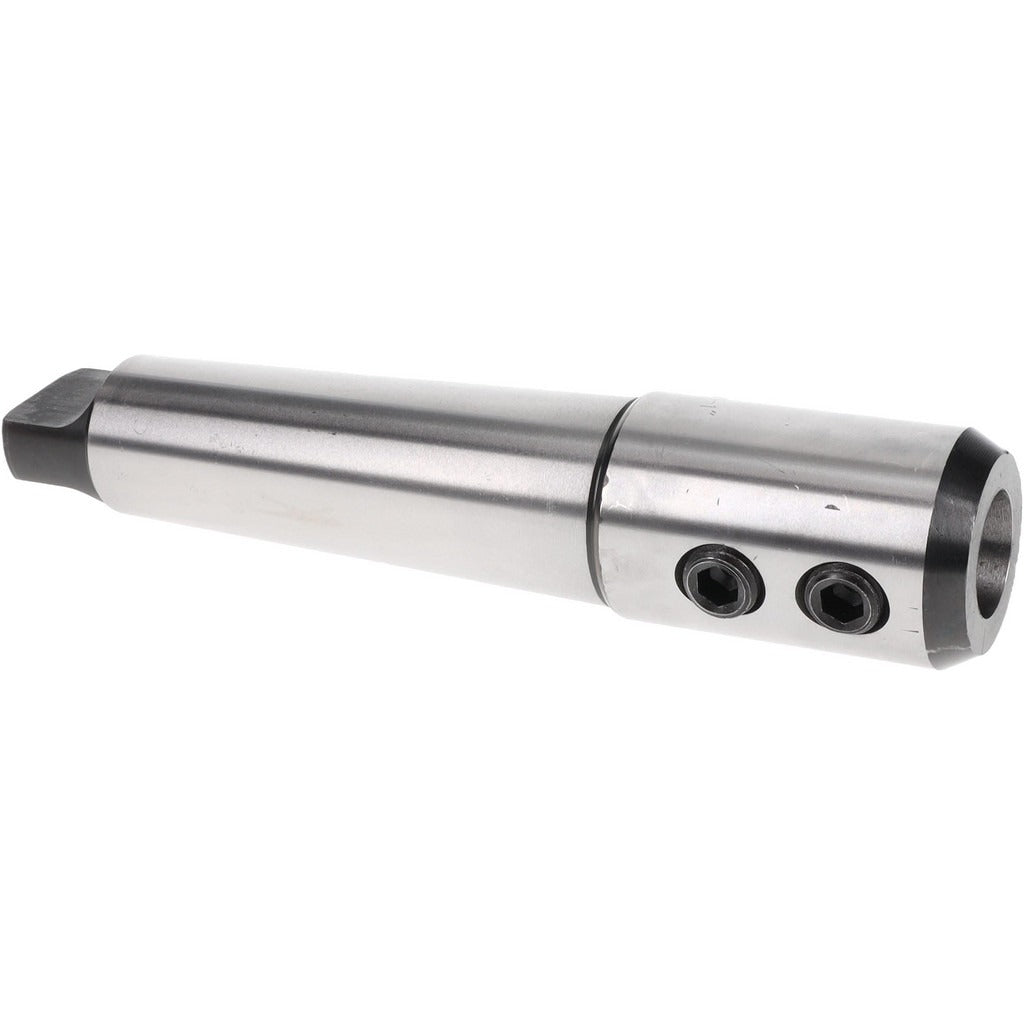

Value Collection 219-5020 End Mill Holder 5MT Taper Shank

Product Description

The VALUE COLLECTION 219-5020 is a 5MT taper shank end mill holder designed for securing end mills in milling machines and machining centers. The holder features a 1-inch hole diameter and a 3.169-inch projection, positioning the cutting tool at the correct distance from the spindle face for standard milling operations. The Morse taper shank provides a rigid, self-holding connection to the machine spindle. This type of toolholder is installed by machinists and CNC operators in production and job-shop environments.

This end mill holder is suited for vertical and horizontal milling machines equipped with a No. 5 Morse taper spindle. The 1-inch bore accommodates standard 1-inch shank end mills. With a 3.169-inch projection, it provides clearance for workholding fixtures and allows access to typical part features without the need for extended-reach tooling. It is appropriate for general-purpose milling of ferrous and non-ferrous materials in both manual and CNC setups.

Key Features

• 5MT taper shank for self-holding fit in compatible machine spindles
• 1-inch hole diameter accepts standard 1-inch shank end mills
• 3.169-inch projection provides workholding clearance in typical setups
• No through-coolant — solid body construction
• Suitable for general-purpose milling operations in job-shop and production environments

Compatibility

Designed as an OEM-style replacement or standard toolholding solution for milling machines equipped with a No. 5 Morse taper spindle and requiring a 1-inch bore end mill holder.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Verify the machine spindle is fully powered down and at rest before inserting or removing the holder. Ensure the taper shank and spindle socket are clean and free of chips or oil film before seating to maintain full contact and concentricity. Use the appropriate drawbar or drift for securing or ejecting the holder per the machine manufacturer's instructions.
