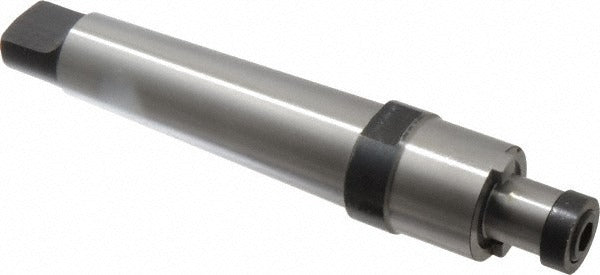

Value Collection 219-4048 Shell Mill Holder 4MT Taper Shank

Product Description

The VALUE COLLECTION 219-4048 is a 4MT taper shank shell mill holder designed to secure shell mill cutters in milling machine spindles. It accepts shell mills with a cutting diameter range of 1-3/4 to 2 inches and features a 3/4-inch pilot diameter for accurate cutter registration. Through-coolant is not supported on this holder. Machinists and toolroom technicians use this holder for face milling, shoulder milling, and surface finishing operations where a Morse taper spindle is present. The solid construction provides rigid cutter support during demanding metal removal passes.

This shell mill holder is suited for vertical and horizontal milling machines equipped with a 4 Morse taper spindle. It is a practical choice for job shops, production floors, and toolroom environments where shell mills in the 1-3/4 to 2 inch diameter class are regularly used. Installation is handled by machinist or toolroom personnel familiar with taper-shank tooling and standard milling setups.

Key Features

• 4MT taper shank for direct mounting in Morse taper machine spindles
• 3/4-inch pilot diameter for precise shell mill cutter alignment
• Compatible with shell mills ranging from 1-3/4 to 2 inches in cutting diameter
• No through-coolant path — external coolant application required when needed
• Single-piece holder construction for rigid cutter support

Compatibility

Designed as an OEM-style replacement or direct-fit tooling solution for milling machines with a 4 Morse taper spindle bore, accommodating shell mill cutters in the 1-3/4 to 2 inch cutting diameter range with a 3/4-inch pilot diameter.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lockout/tagout the milling machine spindle before mounting or removing the holder. Clean the spindle bore and taper shank thoroughly before seating to ensure full taper contact and prevent runout. Use a proper drawbar or retention mechanism appropriate for the machine spindle to secure the holder before operation.
