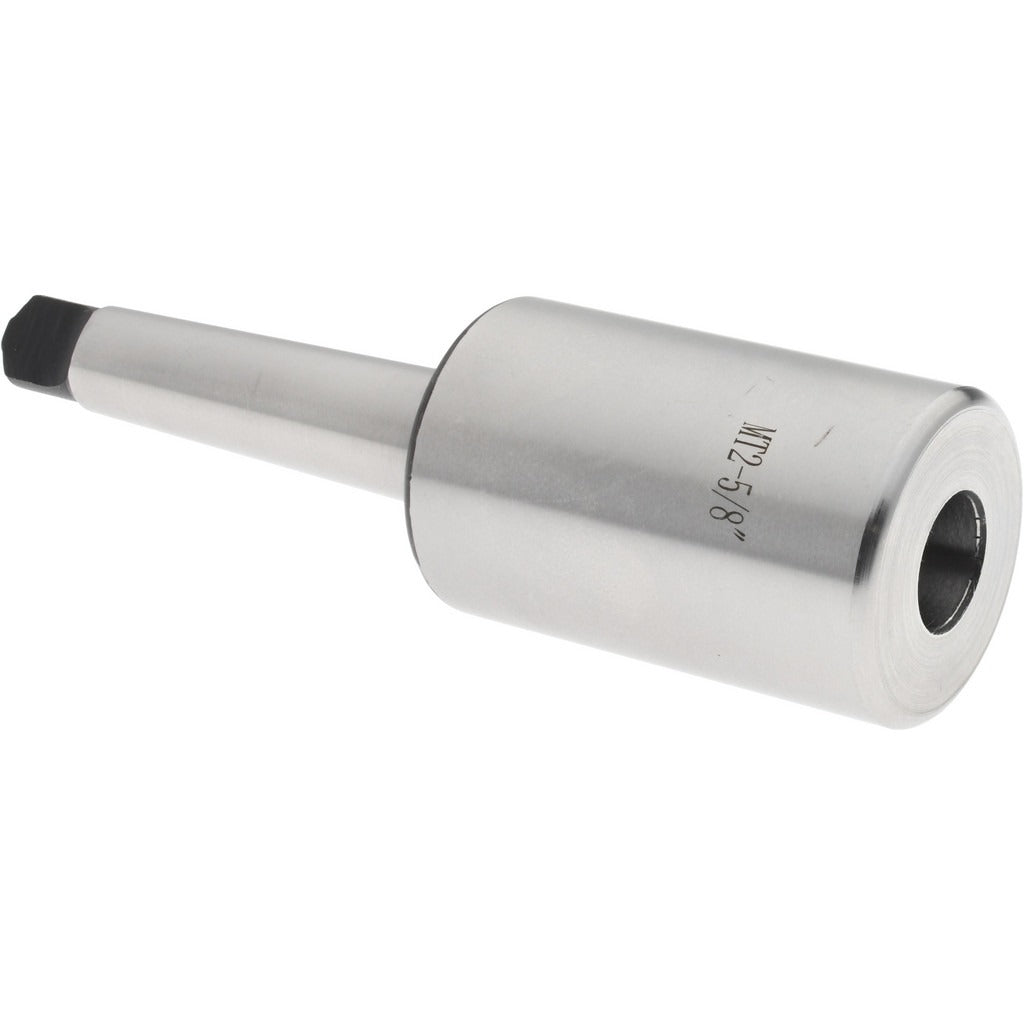

Value Collection 219-2017 End Mill Holder 2MT Taper

Product Description

The VALUE COLLECTION 219-2017 is a 2MT taper shank end mill holder designed to secure end mills in milling machines and machining centers that accept a No. 2 Morse taper spindle. The holder features a 5/8 inch bore with a projection of 3.15 inches, positioning the cutting tool at a consistent standout from the spindle face. This type of toolholder is a standard workholding component used by machinists and tool and die makers in production and job-shop environments. Through-coolant is not supported on this holder.

This end mill holder is suited for knee mills, manual vertical milling machines, and light-duty machining centers equipped with a No. 2 Morse taper spindle. The 5/8 inch hole diameter accepts standard 5/8 inch shank end mills. The 3.15 inch projection makes it appropriate for setups where moderate tool extension is needed to clear workholding fixtures or reach into shallow pockets.

Key Features

• 2MT (No. 2 Morse taper) shank for direct spindle mounting on compatible machines
• 5/8 inch bore diameter accepts standard 5/8 inch shank end mills
• 3.15 inch projection length for consistent tool standout
• No through-coolant passage, keeping the design simple and low-maintenance
• Compact form factor suitable for job-shop and production milling applications

Compatibility

Designed as a standard replacement or supplementary toolholder for milling machines and machining centers with a No. 2 Morse taper spindle bore and accepting 5/8 inch shank end mills.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's guidelines. Ensure the machine spindle is fully powered down and at a complete stop before seating or removing any taper-shank toolholder. The taper shank and spindle bore should be clean and free of chips, oil, and debris before insertion to ensure proper seating and runout. Use an appropriate drift and mallet to remove the holder from the spindle; never strike the cutting tool or holder body directly.
