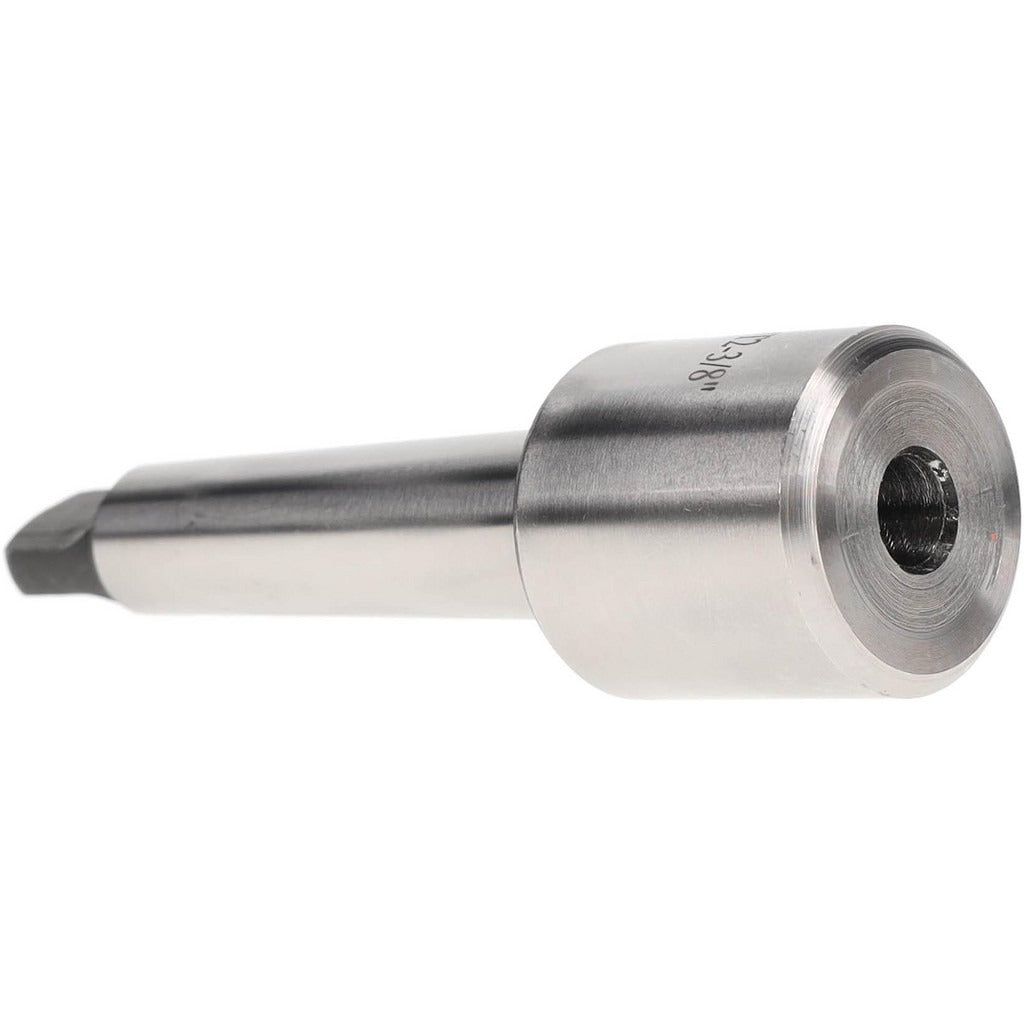

Value Collection 219-2015 End Mill Holder 2MT Taper

Product Description

The VALUE COLLECTION 219-2015 is a 2MT taper shank end mill holder designed to secure end mills in milling machines and machining centers equipped with a Morse taper spindle. The holder accepts a 3/8-inch bore and provides a 2.559-inch projection from the spindle face to the tool tip, giving operators the clearance needed for a wide range of milling operations. Weighing approximately 0.17 pounds, this holder offers a compact, rigid connection between the spindle and cutting tool. It does not include through-coolant capability. Machinists and tool-and-die professionals will find this holder well suited for standard end milling, slotting, and profiling work.

This end mill holder is intended for use in vertical milling machines, knee mills, and machining centers that accept a No. 2 Morse taper spindle. The 3/8-inch hole diameter accommodates commonly sized end mills used in general-purpose metal removal tasks in job shop and production environments. The 2.559-inch projection suits applications where moderate tool extension is required without sacrificing rigidity. Suitable for light to medium-duty milling operations in both manual and CNC-compatible setups that use MT2 tooling.

Key Features

• 2MT (No. 2 Morse taper) shank for direct spindle mounting
• 3/8-inch bore diameter for standard end mill shanks
• 2.559-inch projection (65.00 mm) from spindle face
• No through-coolant port — compatible with external coolant delivery setups
• Lightweight at approximately 0.17 pounds for easy handling during tool changes

Compatibility

Designed as an OEM-style replacement or standard tooling addition for milling machines and machining centers with a No. 2 Morse taper spindle bore accepting 3/8-inch shank end mills.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine before inserting or removing any taper tooling from the spindle. Ensure the taper shank and spindle bore are clean and free of chips, oil film, or burrs before seating the holder to achieve full contact and prevent fretting. Use the appropriate draw bar or drift to properly seat and release the taper — never strike the spindle directly.
