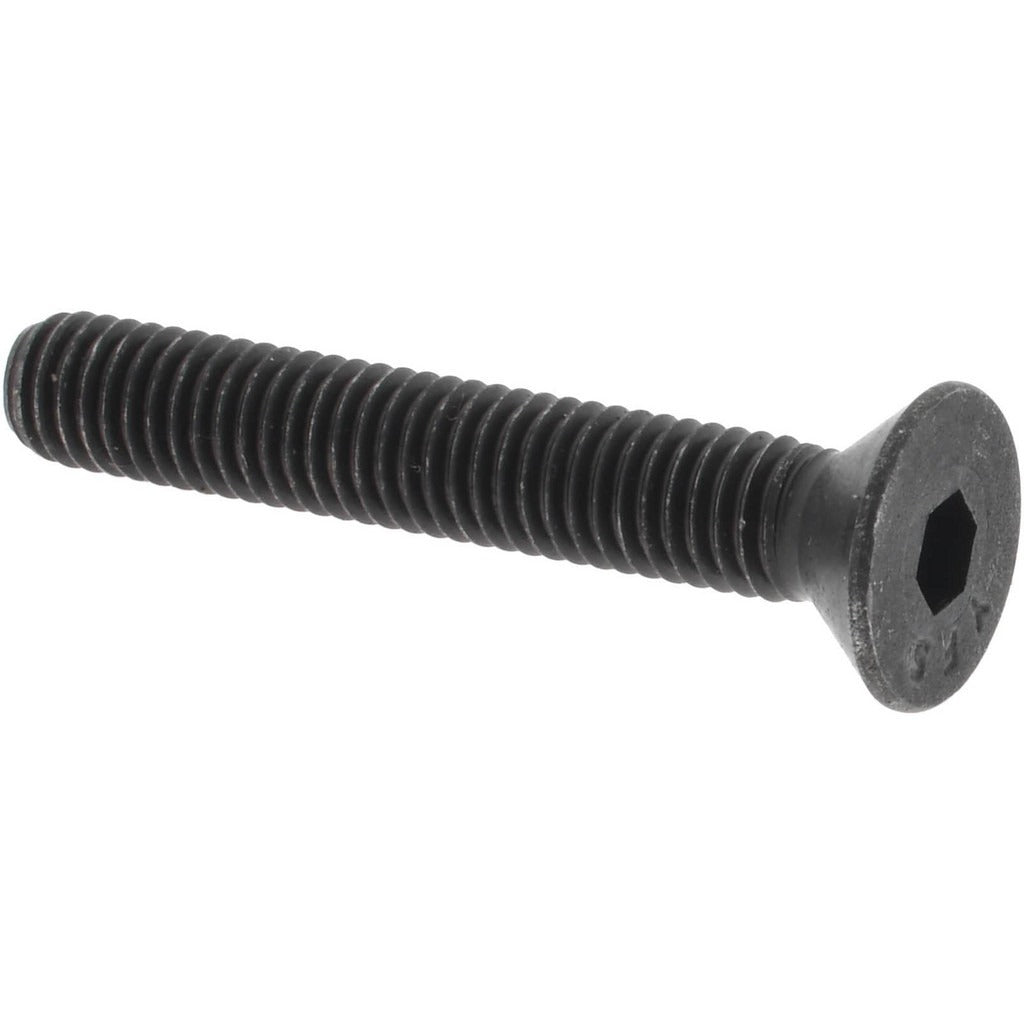

Value Collection 211085PR Flat Socket Cap Screw 10-32

Product Description

The VALUE COLLECTION 211085PR is an 82-degree flat socket cap screw designed for flush or countersunk fastening applications. It features a hex socket drive and is fully threaded along its 1-1/4-inch overall length with a 10-32 UNF thread form. Constructed from alloy steel with a black oxide finish, this screw provides corrosion resistance and a low-reflectance appearance suited to precision assemblies. It meets ASME/ANSI B18.3 and ASTM F835 dimensional and material standards, making it a reliable choice for mechanical assemblies where a flat seating surface is required.

This flat socket cap screw is used in applications where the fastener head must sit flush with or below the surface of the mating material. Typical uses include machine components, tooling fixtures, panels, and equipment enclosures where head clearance is restricted. The 10-32 fine thread offers strong thread engagement in thin or hard materials. Installed by machinists, maintenance technicians, and mechanical assemblers using standard hex keys or Allen drivers.

Key Features

• 82-degree flat head seats flush in standard countersunk holes
• Hex socket drive accepts 1/8-inch Allen key or hex bit
• 10-32 UNF fully threaded for maximum thread engagement
• Alloy steel construction for high tensile strength
• Black oxide finish reduces surface reflectance and provides light corrosion protection
• Meets ASME/ANSI B18.3 and ASTM F835 standards

Compatibility

Designed as a standard replacement or stock fastener for any assembly requiring a 10-32 UNF flat socket cap screw with an 82-degree countersink angle and 1/8-inch hex socket drive.

Installation Notes

Install using a 1/8-inch hex key or Allen-style bit driver rated for the required torque. Ensure the mating material is countersunk to 82 degrees before installation to achieve proper flush seating. Do not substitute a standard flat-head driver or ball-end hex key where high torque is required, as this may damage the socket. Inspect thread engagement and countersink depth before final tightening.
