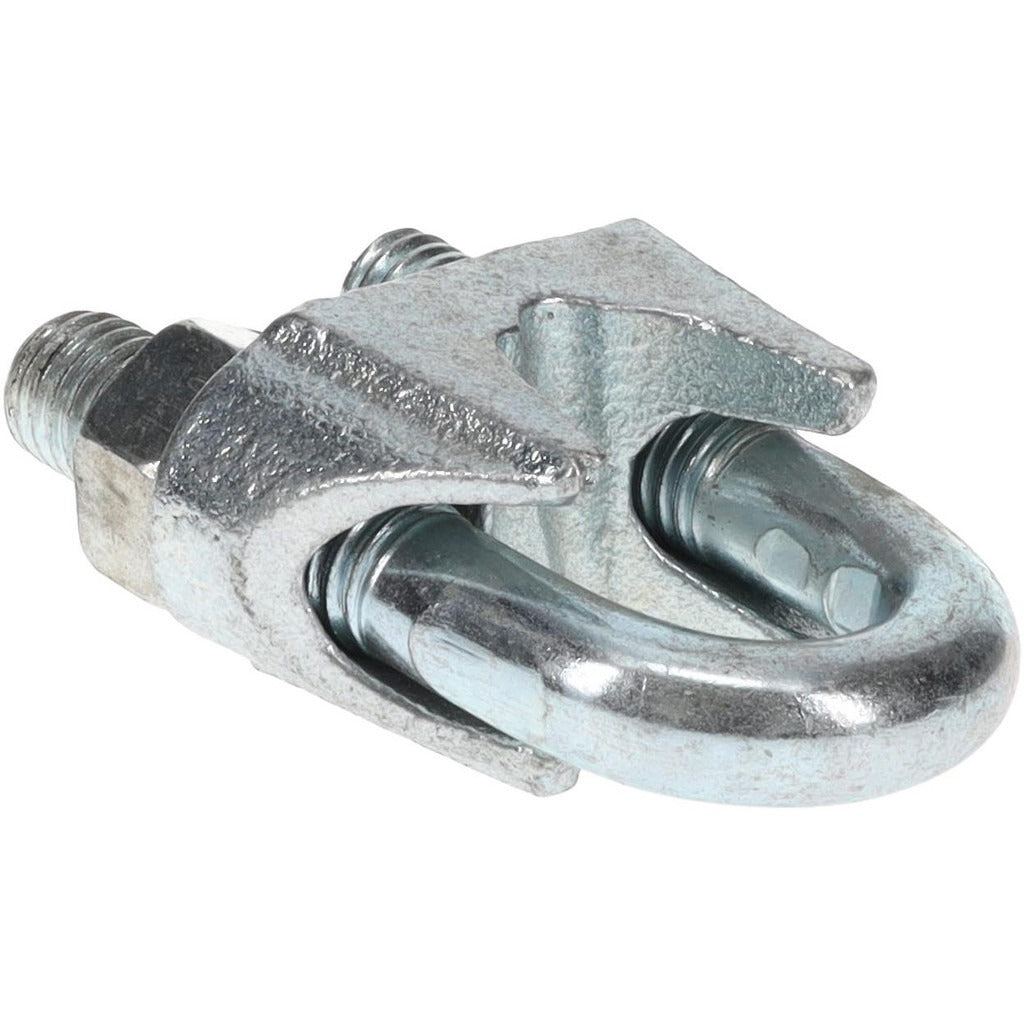

Value Collection 20950 Wire Rope Clip 3/4 in Malleable Iron

Product Description

The VALUE COLLECTION 20950 is a malleable iron wire rope clip designed to form secure loop-back or end connections on wire rope assemblies. Finished in galvanized coating for corrosion resistance, this clip fits 3/4 inch diameter wire rope and is rated for use in rigging, lifting, and tie-down applications where a reliable mechanical termination is required. A minimum of 4 clips per connection is the standard practice for this rope diameter, following accepted rigging guidelines. Licensed riggers, millwrights, and industrial maintenance technicians are the typical installers of this hardware.

This clip is suited for static and low-cycle rigging applications in industrial, construction, marine dock, and facility maintenance environments. Common uses include forming eyes on wire rope slings, securing wire rope to anchor points, and tensioning applications where swaged fittings are not practical. The galvanized finish makes it appropriate for outdoor and moderately corrosive environments where bare iron would be unsuitable.

Key Features

• Fits 3/4 inch diameter wire rope for a secure mechanical termination
• Malleable iron construction provides strength with resistance to impact fracture
• Galvanized finish resists rust and corrosion in outdoor and wet environments
• Minimum of 4 clips required per connection for proper load distribution
• Sold individually, allowing purchase of exact quantities needed

Compatibility

Designed as a standard wire rope clip for use with 3/4 inch diameter wire rope in general rigging and lifting applications.

Installation Notes

Wire rope clips must be installed by qualified rigging personnel following applicable ASME B30.26 or OSHA rigging standards. The U-bolt saddle must bear on the live end of the rope, never the dead end, per the dead-end rule. Apply the required minimum number of clips spaced at least 6 clip widths apart, tighten to the manufacturer torque specification found on the clip packaging, and re-torque after initial load is applied. Never use wire rope clips as a substitute for properly swaged or spelter socket terminations in critical overhead lifting.
