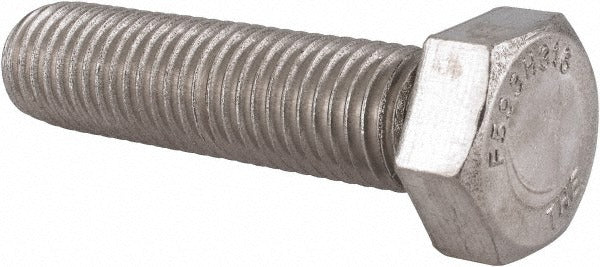

Value Collection 202914B Hex Cap Screw 3/4-10x3 316 Ss

Product Description

The VALUE COLLECTION 202914B is a fully threaded hex head cap screw designed for fastening applications that demand corrosion resistance and structural integrity. Sized at 3/4-10 x 3 inches with a Unified National Coarse (UNC) thread standard, it is manufactured from Grade 316 stainless steel and left uncoated, making it well suited for wet, chemical-exposure, or marine environments. The full-thread configuration runs the entire length under the head, providing maximum thread engagement across the fastened assembly. Plumbers, pipefitters, and mechanical contractors commonly use this grade of fastener when working with stainless flanges, equipment mounts, and process piping connections.

This fastener is appropriate for residential and commercial installations where standard carbon steel hardware is not acceptable due to corrosion risk. Typical applications include pipe flange bolting, pump mounting, HVAC equipment bases near outdoor or coastal environments, and pool mechanical room hardware. Grade 316 stainless offers improved resistance to chlorides and pitting compared to Grade 304, making it a preferred choice in pool, marine, and chemical service settings.

Key Features

• Grade 316 stainless steel construction for superior corrosion and chloride resistance
• Fully threaded shank for maximum thread engagement and holding strength
• 3/4-10 UNC thread standard ensures compatibility with standard inch-series nuts and tapped holes
• Uncoated finish eliminates coating compatibility concerns in harsh or chemical environments
• 3-inch length under head suits medium-depth flange and structural fastening applications

Compatibility

Designed as a standard inch-series hex head cap screw compatible with 3/4-10 UNC tapped holes and nuts conforming to ASME and ANSI inch fastener standards.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or mechanical contractors per applicable codes. Ensure mating components are clean and free of debris before threading. When assembling stainless fasteners, apply an appropriate anti-seize compound to prevent galling during torquing. Always de-energize or depressurize the system before servicing any flanged or bolted connection.
