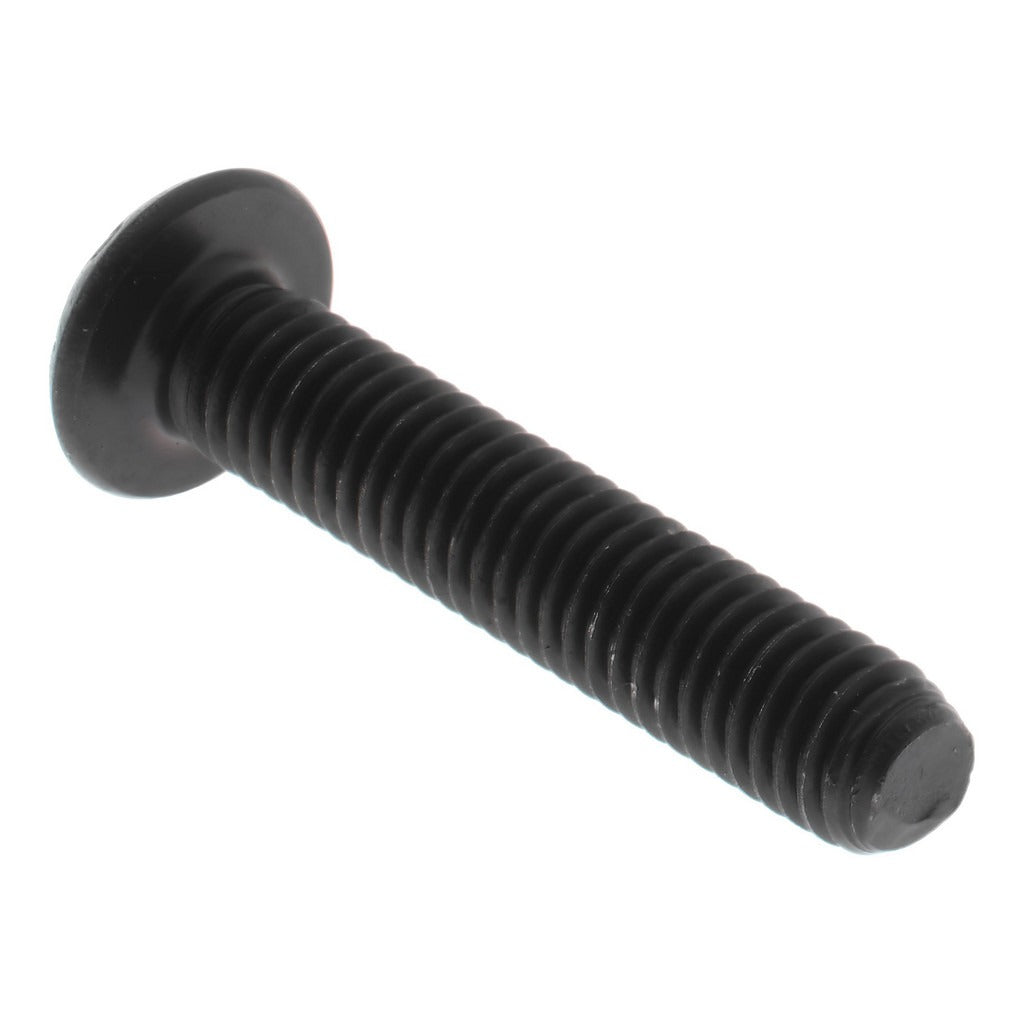

Value Collection 201079PR Button Socket Cap Screw 10-32

Product Description

The VALUE COLLECTION 201079PR is a button socket cap screw designed for applications where a low-profile head is required alongside high clamping strength. This fully threaded fastener features a 10-32 UNF thread size and a 1-inch length under the head, driven by a 1/8-inch hex socket. Constructed from alloy steel with a black oxide finish, it meets ANSI/ASME B18.3 and ASTM F835 standards. The hardness rating of 36-43 HRC ensures reliable performance in demanding mechanical assemblies. It is installed by machinists, millwrights, and mechanical technicians across a wide range of industrial and commercial applications.

This screw is suited for use in machinery, fixtures, enclosures, and assemblies where a rounded, low-profile button head reduces snag risk and maintains clearance near adjacent components. The black oxide coating provides mild corrosion resistance and a uniform matte appearance, making it appropriate for both interior mechanical assemblies and light industrial environments. The 10-32 UNF thread pitch offers fine-thread engagement for secure fastening in tapped holes or threaded inserts. Minimum order quantity is 100 pieces per order.

Key Features

• Button head profile reduces protrusion and snag risk in tight assemblies
• 10-32 UNF fully threaded, 1 inch length under head
• 1/8-inch hex socket drive for precise torque application
• Alloy steel construction with 36-43 HRC hardness rating
• Black oxide finish for mild corrosion resistance and matte appearance
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard 10-32 UNF button socket cap screw suitable for use in any tapped hole or threaded insert conforming to Class 3A thread fit tolerances in mechanical assemblies and industrial fixtures.

Installation Notes

Install using a 1/8-inch hex key or socket driver. Ensure the mating tapped hole meets Class 3A thread fit specifications before installation. Verify hole depth and thread engagement length are adequate for the application before applying torque. Follow applicable mechanical or structural standards for fastener torque requirements based on joint material and assembly design.
