Value Collection 201073PR Button Socket Cap Screw 10-32

Product Description

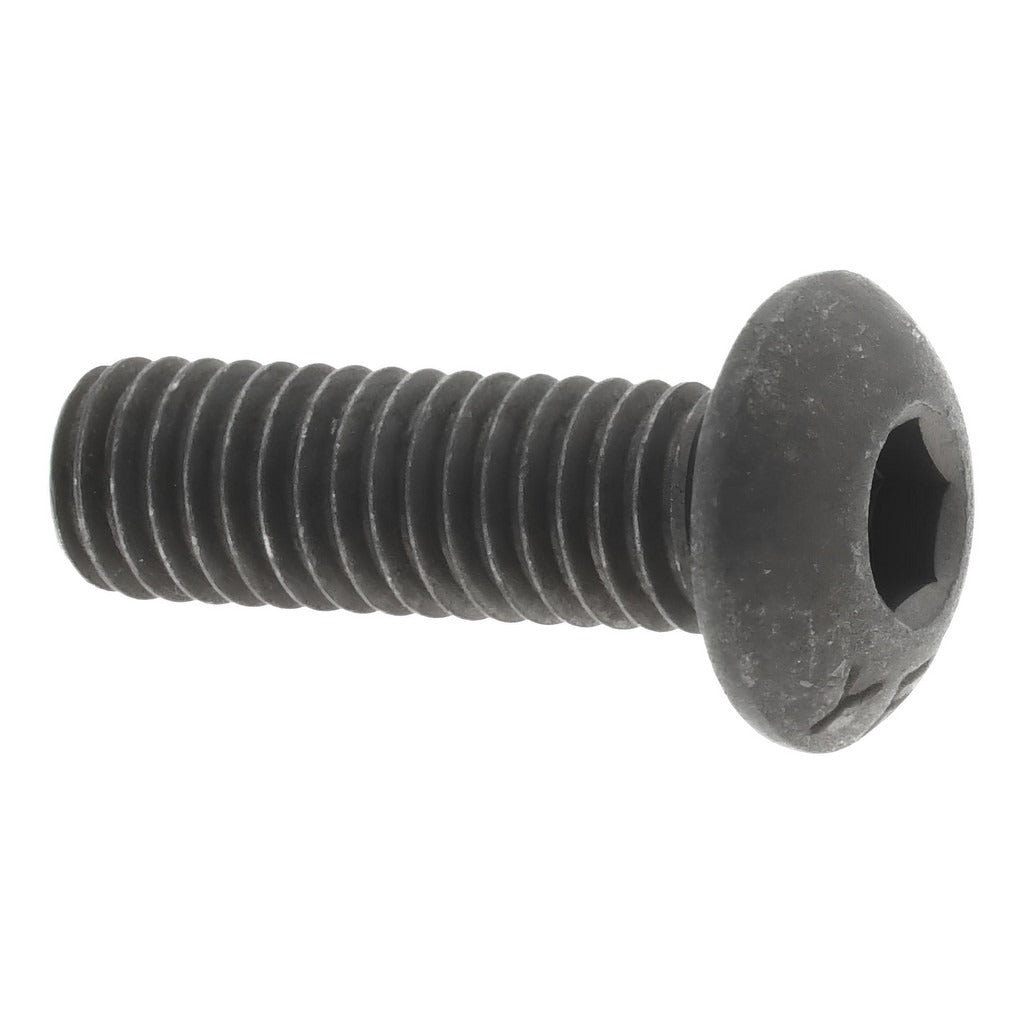

The VALUE COLLECTION 201073PR is a button socket cap screw designed for applications where a low-profile head and high clamping strength are required. Sized at 10-32 with a 5/8-inch length under head, it is fully threaded and driven by a 1/8-inch hex socket. Manufactured from alloy steel with a black oxide finish, it meets ANSI/ASME B18.3 and ASTM F835 standards. Hardness is rated at 36-43 HRC, making it suitable for demanding mechanical assemblies. This fastener is installed by machinists, millwrights, and mechanical contractors across a range of industrial and commercial applications.

The 201073PR is suited for use in machine frames, panel enclosures, jigs, fixtures, and other assemblies where a flush or near-flush head profile is preferred over a standard socket head cap screw. The button head style reduces the risk of snagging on adjacent components. The black oxide finish provides a degree of corrosion resistance and reduces light reflection, making it a common choice in industrial equipment and precision assemblies. Thread class 3A ensures a close tolerance fit for consistent engagement.

Key Features

• Button head profile provides low-profile installation with 0.1010-inch head height
• 1/8-inch hex socket drive for use with standard hex keys
• Fully threaded 10-32 UNF thread at 5/8-inch length under head
• Alloy steel construction rated 36-43 HRC for high-strength applications
• Black oxide coating for corrosion resistance and reduced reflectivity
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as an OEM-style replacement or direct-use fastener for assemblies requiring a 10-32 UNF fully threaded button socket cap screw with a 5/8-inch length under head and 1/8-inch hex drive.

Installation Notes

Installation is performed by machinists or mechanical technicians using a 1/8-inch hex key or socket driver. Ensure mating threads are clean and free of debris before driving. Do not exceed the designed clamping load for the thread size and material of the mating component. Right-hand thread direction requires standard clockwise installation torque.
