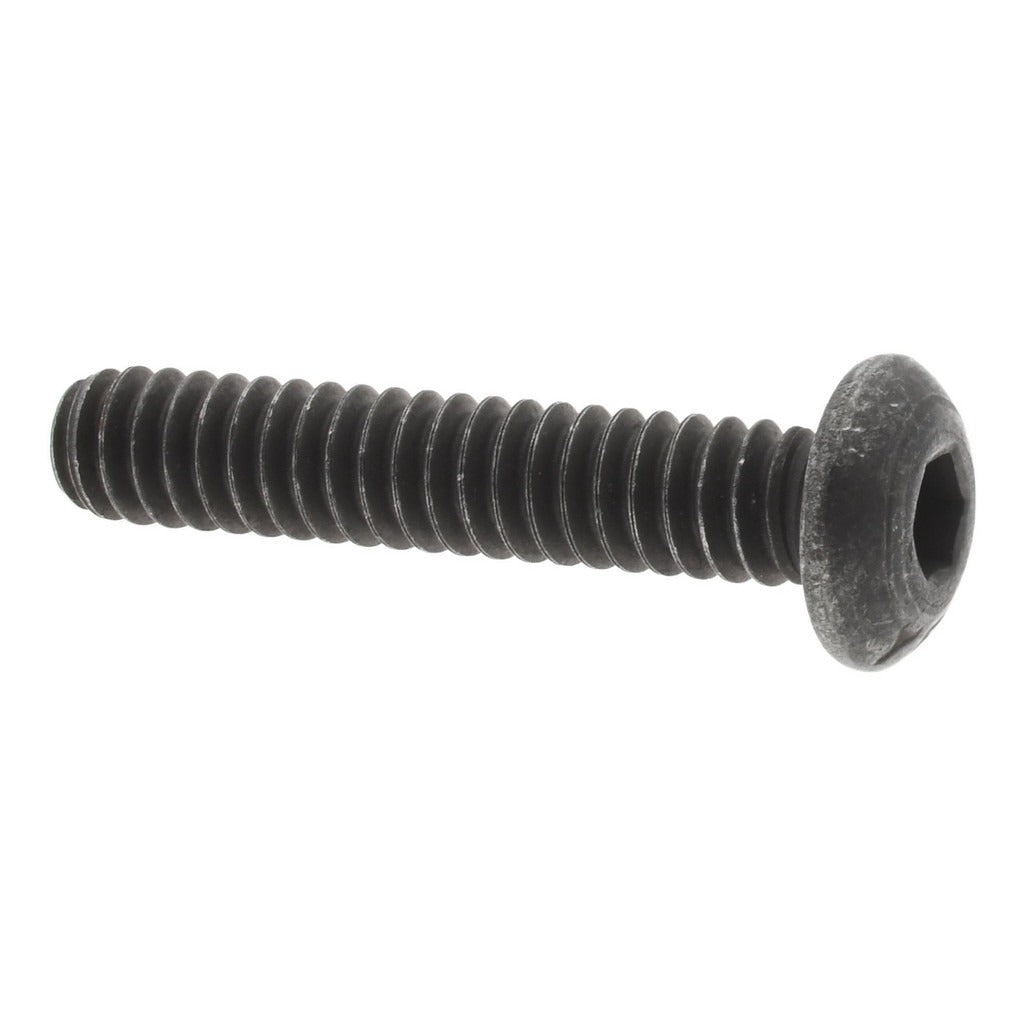

Value Collection 201065PR Button Socket Cap Screw 10-24

Product Description

The VALUE COLLECTION 201065PR is a button socket cap screw sized 10-24 x 1 inch, manufactured from alloy steel with a black oxide coating. The button head profile provides a low-profile, rounded top surface that reduces snag points in assemblies where clearance is limited. Drive engagement is through a 1/8 inch hex socket, requiring a standard hex key or socket driver. The black oxide finish offers mild corrosion resistance and a consistent dark appearance. This fastener is fully threaded with a Unified Coarse (UNC) right-hand thread and meets ANSI/ASME B18.3 and ASTM F835 standards, making it a recognized choice for precision mechanical assemblies.

This screw is used across a wide range of light to medium-duty mechanical and structural assembly applications. Common installation environments include machine frames, enclosures, jigs, fixtures, and panel assemblies where a low-profile head is preferred over a standard cap screw. It is suited for use by machinists, millwrights, maintenance technicians, and fabricators working in industrial, manufacturing, and general trade settings. The fully threaded shank allows engagement from the tip to directly under the head, making it particularly useful in thin-material or short-grip applications.

Key Features

• Button head profile for low clearance and snag-free assemblies
• 1/8 inch hex socket drive for standard hex key compatibility
• Fully threaded 10-24 UNC right-hand thread
• Alloy steel construction with hardness rated 36-43 HRC
• Black oxide coating for mild corrosion resistance and uniform appearance
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard 10-24 UNC button socket cap screw for use in tapped holes or threaded inserts requiring a low-profile hex socket fastener per ANSI/ASME B18.3 specifications.

Installation Notes

Installation requires a 1/8 inch hex key or Allen driver; use of a calibrated torque wrench is recommended to avoid over-torquing alloy steel fasteners into softer base materials. Ensure the mating tapped hole meets 3A thread fit class tolerances before installation. Do not use this fastener in applications requiring through-hole clamping without a corresponding nut unless the base material is tapped to specification.
