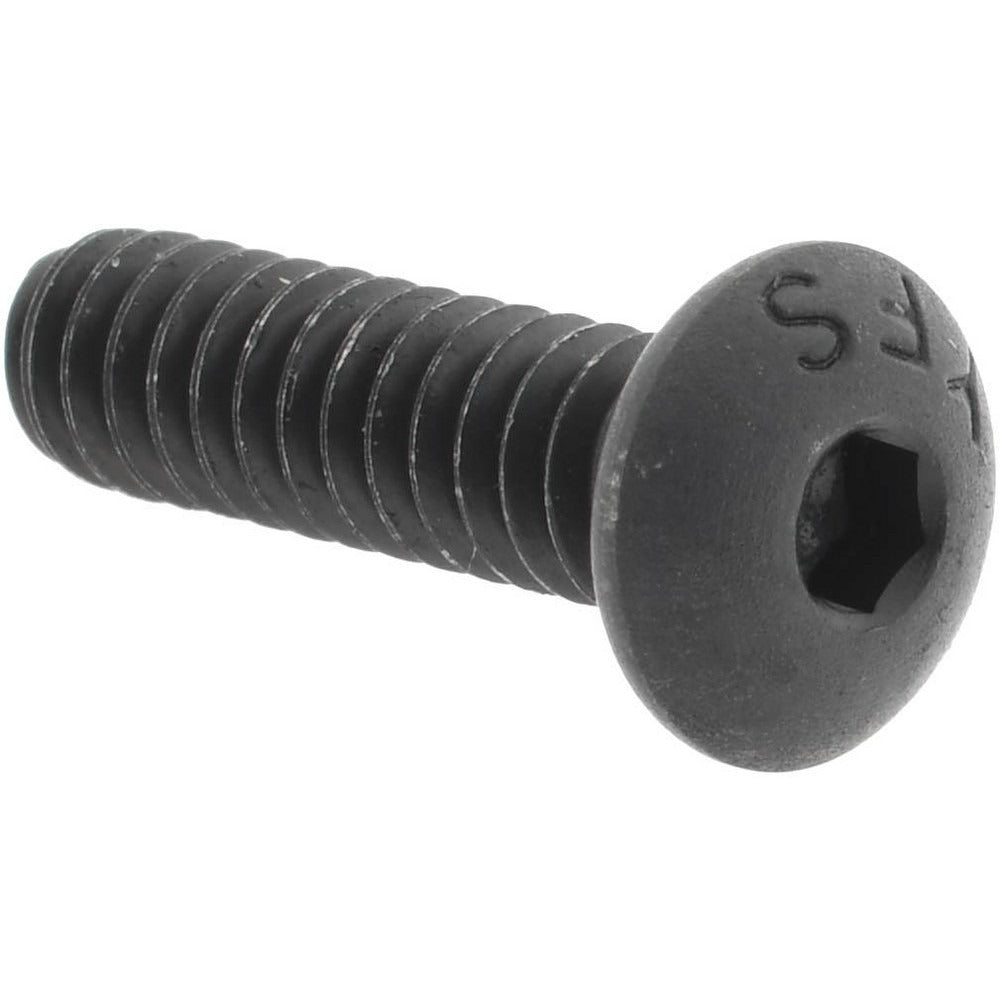

Value Collection 201022P Button Socket Cap Screw 6-32

Product Description

The VALUE COLLECTION 201022P is a button socket cap screw designed for applications requiring a low-profile head with a secure hex socket drive. Sized at 6-32 UNC threading with a 1/2-inch length under the head, this fastener is manufactured from alloy steel and finished with a black oxide coating for moderate corrosion resistance. The 5/64-inch hex socket drive accepts standard hex keys. Hardness is rated at 36-43 HRC per ASTM F835, and the thread fit is Class 3A right-hand. It conforms to ANSI/ASME B18.3 and ASTM F835 standards. Mechanical, maintenance, and assembly technicians commonly install these in equipment panels, enclosures, and fixtures where a flush or near-flush head profile is required.

This button socket cap screw is suited for light- to medium-duty fastening in machinery, electronics enclosures, sheet metal assemblies, and general mechanical applications. The black oxide finish blends with dark-colored components and provides a degree of surface protection in dry or mildly humid indoor environments. The fully threaded shank and UNC thread form make it compatible with standard 6-32 tapped holes found across a wide range of industrial and commercial equipment. Sold individually per package with a minimum order quantity of 100 pieces.

Key Features

• Button head profile provides a low-profile, rounded appearance for panel and enclosure applications
• 5/64-inch hex socket drive for use with standard hex keys or hex socket bits
• Alloy steel construction with 36-43 HRC hardness rating per ASTM F835
• Black oxide coating for surface protection and reduced light reflection
• Fully threaded shank with 6-32 UNC Class 3A right-hand thread
• Meets ANSI/ASME B18.3 and ASTM F835 dimensional and performance standards

Compatibility

Designed as a standard replacement or stock fastener for any application using 6-32 UNC tapped holes requiring a button head socket cap screw per ANSI/ASME B18.3.

Installation Notes

Install using a 5/64-inch hex key or matching hex socket bit. Ensure mating threads are clean and free of debris before installation. Do not exceed the rated thread engagement depth for the base material to avoid stripping. Follow applicable mechanical assembly standards and equipment manufacturer torque guidelines for 6-32 fasteners in the specific base material being used.
