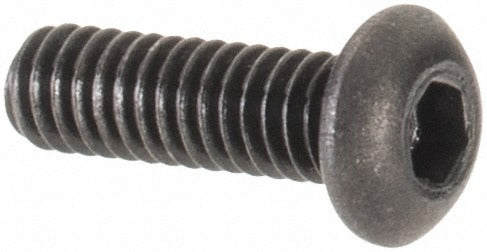

Value Collection 201007PR Button Socket Cap Screw 1-72

Product Description

The VALUE COLLECTION 201007PR is a button socket cap screw designed for precision fastening in tight-clearance applications. It features a low-profile button head driven by a hex socket and is fully threaded along its 1/4-inch body length on a 1-72 UNF thread form. Manufactured from alloy steel with a black oxide finish, this screw delivers corrosion resistance and hardness rated at 36 to 43 HRC. It conforms to ANSI/ASME B18.3 and ASTM F835 standards. Licensed electricians, mechanical contractors, and millwrights commonly use this fastener when head clearance is limited and a flush or near-flush profile is required.

This screw is suited for light-duty mechanical assemblies, instrument panels, electrical enclosures, and precision equipment where a standard hex cap screw would interfere with surrounding components. The 1-72 thread size targets fine-pitch applications requiring a secure, right-hand thread engagement. The black oxide finish reduces light reflection and provides mild corrosion protection in indoor and controlled-environment installations. Sold individually with a minimum order quantity of 100 units per order.

Key Features

• Low-profile button head for use in tight-clearance and flush-mount applications
• Hex socket drive for precise torque application with standard Allen keys
• Fully threaded on a 1-72 UNF right-hand thread form for consistent engagement
• Alloy steel construction with 36 to 43 HRC hardness rating
• Black oxide finish for reduced reflectivity and mild corrosion resistance
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard-compliance replacement or new-installation fastener for applications requiring a 1-72 UNF button socket cap screw per ANSI/ASME B18.3 specifications.

Installation Notes

Installation is performed with the appropriate hex key or socket driver sized for the hex socket head. Verify that the mating threaded hole or nut is also rated for a 3A thread fit class before installation. Confirm the black oxide finish is adequate for the service environment, as black oxide alone provides minimal corrosion protection in wet or outdoor conditions. Inspect threads for damage before assembly to avoid galling or cross-threading.
