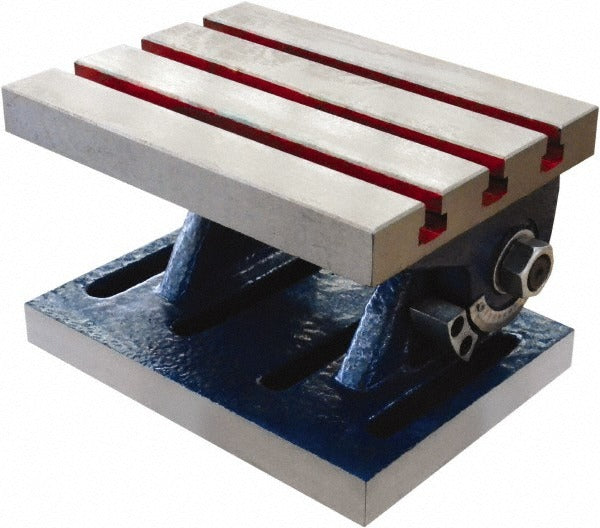

Value Collection 200-1306 Angle Table 0-90 Degree Tilt

Product Description

The VALUE COLLECTION 200-1306 is a manual angle table designed for use in machining and toolroom setups where precise angular positioning of a workpiece is required. The table tilts from 0 to 90 degrees, allowing operators to set compound angles for milling, grinding, or drilling operations. It measures 8 inches overall length, 6 inches in width, and 5 inches in height, and weighs 26 pounds. The 3/8-inch T-slot width accommodates standard T-slot hardware for securing fixtures or workpieces directly to the table surface.

This angle table suits toolroom, job shop, and production machining environments where accurate angular setups are needed without complex fixturing. It is appropriate for use on vertical mills, surface grinders, and similar machine tools. The swivel capability and broad 0-to-90-degree tilt range make it versatile for both standard and compound-angle work across a variety of part geometries and materials.

Key Features

• 0 to 90 degree tilt range for full angular positioning flexibility
• Swivel function supports compound-angle setups
• 3/8-inch T-slot width accepts standard T-slot clamping hardware
• 8 inches overall length x 6 inches wide x 5 inches tall for a compact footprint
• 26-pound construction provides stability during cutting operations

Compatibility

Designed as a general-purpose angle table suitable for use with vertical mills, surface grinders, and similar machine tools that accept manual workholding fixtures.

Installation Notes

Installation and setup are typically performed by a machinist or toolroom technician. Ensure the host machine table is powered down and all spindle motion has stopped before mounting or adjusting the angle table. Secure the unit to the machine table using appropriate T-slot bolts and verify tilt-angle lock hardware is fully tightened before beginning any cutting or grinding operation. Do not exceed the load capacity appropriate for the machine table being used.
