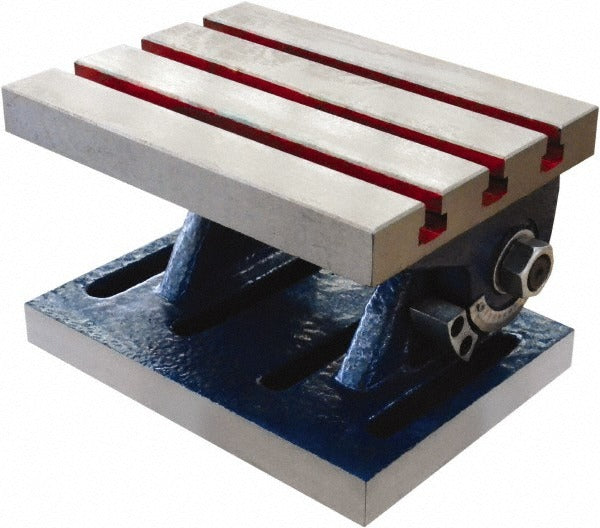

Value Collection 200-1305 Angle Table 0 to 90 Degree Tilt

Product Description

The VALUE COLLECTION 200-1305 is a manual angle table designed for use in machining and metalworking applications where precise angular positioning of a workpiece is required. The table tilts from 0 to 90 degrees, allowing machinists to set and lock the desired angle before milling, drilling, or grinding operations. It measures 6 inches in overall length, 5 inches in overall width, and 4.5 inches in overall height. Weighing 12 pounds, this is a solid, shop-floor-ready tool. The table features a 3/8-inch T-slot width for secure workpiece or fixture clamping.

This angle table is suited for use on vertical milling machines, drill presses, and surface grinders in machine shops, tool rooms, and fabrication environments. It is a practical solution for production runs or one-off setups that require repeatable angular positioning without the need for custom fixturing. Machinists and toolmakers are the primary users of this type of workholding accessory.

Key Features

• Tilt range of 0 to 90 degrees for versatile angular workpiece positioning
• 3/8-inch T-slot width accommodates standard clamping hardware
• 6-inch overall length provides a stable base for workpiece support
• Swivel capability for additional positioning flexibility
• Compact 5-inch width fits standard mill or drill press tables
• 12-pound construction indicates solid, rigid build suitable for shop use

Compatibility

Designed as a general-purpose angle table compatible with standard vertical milling machines, drill presses, and surface grinders that accept auxiliary workholding fixtures on their table surfaces.

Installation Notes

Installation is typically performed by a machinist or toolmaker. Before mounting, power down and lock out the machine tool per standard lockout/tagout procedures. Secure the angle table to the machine table using appropriately rated T-slot bolts and clamps matched to the 3/8-inch T-slot width. Verify the table is fully locked at the desired tilt angle before beginning any cutting operation.
