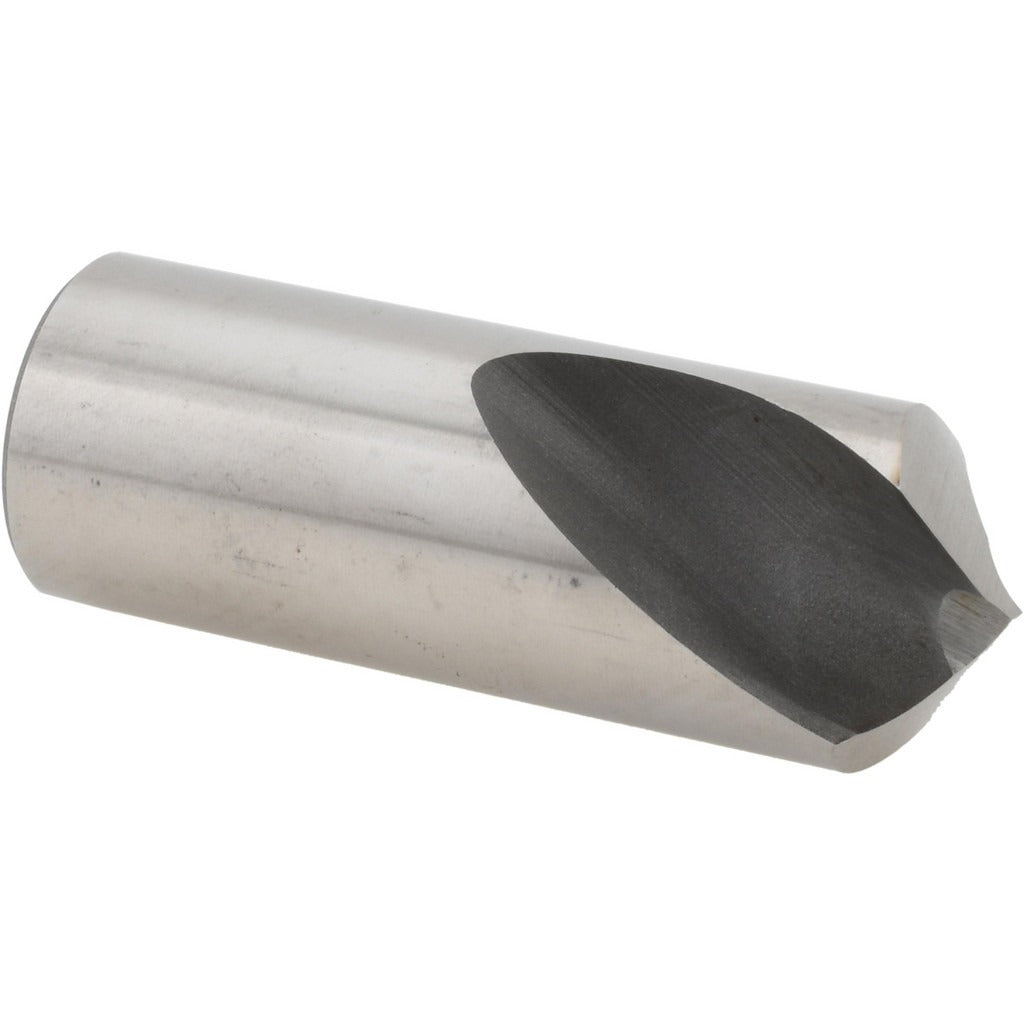

Value Collection 19442961000000S Spotting Drill 1 in Hss

Product Description

The VALUE COLLECTION 19442961000000S is a single-ended spotting drill designed to create accurate center-point indentations before full drilling operations. Built from high-speed steel with a bright, uncoated finish, it features a 118-degree point angle and a 1-inch cutting diameter. Overall length is 2.5 inches, making it a compact, rigid tool suited to reduce drill wander on flat or angled workpiece surfaces. Right-hand cut with a spiral flute design, it is appropriate for general-purpose metal fabrication and machining applications. Machinists and tool-and-die technicians are the primary installers and operators of this drill.

This spotting drill is intended for use in general-purpose machining environments, including manual mill operations, CNC setups, and drill press applications. The 1.25-inch flute length and 1-inch straight-cylindrical shank allow it to seat securely in standard ER or straight-bore collet chucks. It performs well on mild steel, aluminum, and similar machinable materials where precise hole location is required before running twist drills, reamers, or boring tools to final diameter.

Key Features

• 118-degree point angle for accurate spotting and reduced drill wander
• 1-inch cutting diameter with a matching 1-inch straight-cylindrical shank
• High-speed steel construction for durability across general-purpose materials
• Bright, uncoated finish suitable for standard cutting fluid applications
• Spiral flute design with 2 flutes for efficient chip evacuation
• Right-hand cut, single-ended configuration for standard machine spindle use

Compatibility

Designed as a general-purpose spotting drill for use in standard straight-bore or collet chuck holders accepting a 1-inch cylindrical shank, suitable for manual mills, CNC machining centers, and drill presses.

Installation Notes

Installation and operation should be performed by a qualified machinist or toolroom technician. Secure the straight-cylindrical shank fully in the collet or chuck before running the spindle, and verify runout with an indicator before production use. Always power down and lock out the machine spindle before changing tooling. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain surface finish quality.
