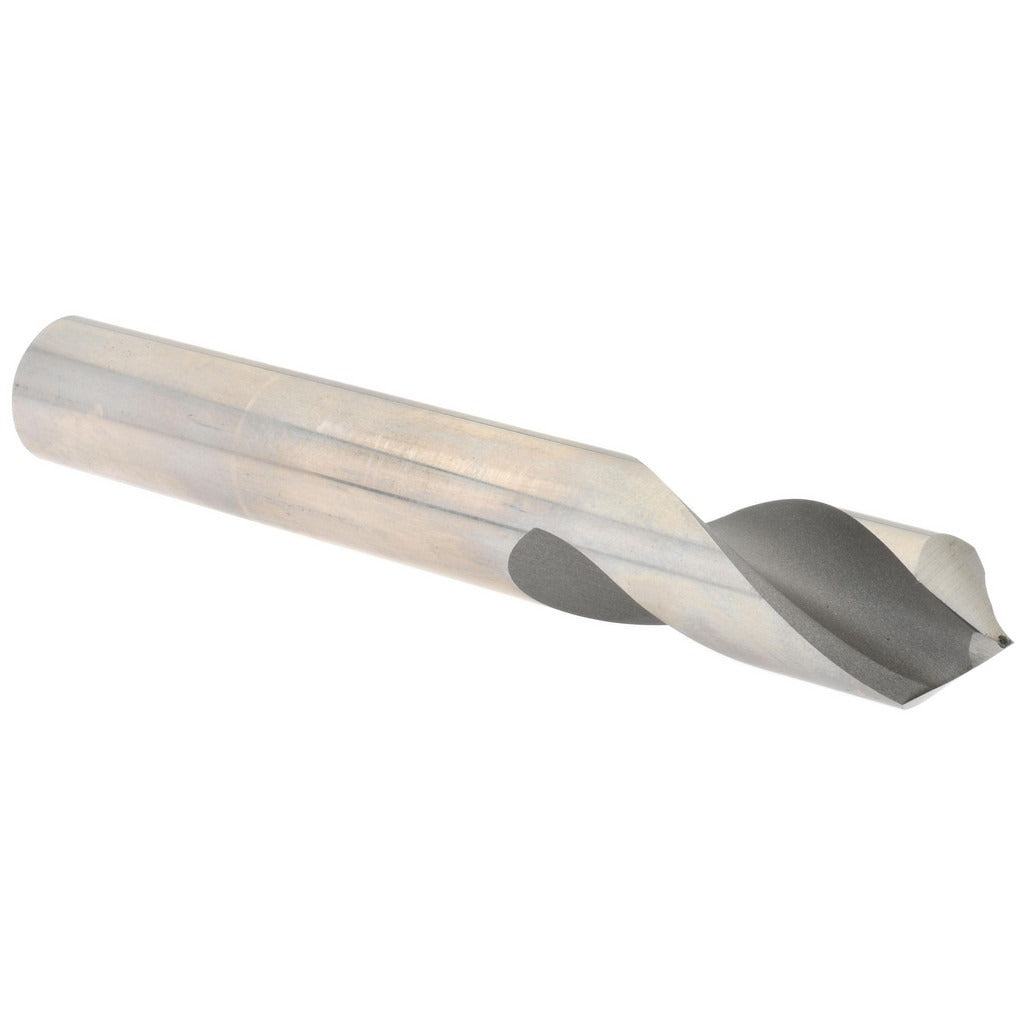

Value Collection 1944296003400X5 Spotting Drill 3/4 in

Product Description

The VALUE COLLECTION 1944296003400X5 is a high speed steel spotting drill designed to accurately start holes for twist drills, reamers, and other cutting tools. With a 90-degree point angle and a 3/4-inch cutting diameter, this single-ended drill creates precise, centered starting points that reduce walking and improve hole location accuracy. The bright, uncoated finish is suitable for general purpose drilling applications in a range of workpiece materials. It is typically installed and operated by machinists, tool-and-die workers, and maintenance professionals working with manual or CNC drilling equipment.

This spotting drill is suited for general purpose use in machine shop, maintenance, and light manufacturing environments. The 5-inch overall length and straight cylindrical shank make it compatible with standard drill chucks and collet holders. The 2-flute spiral design aids chip clearance during the spotting operation. With a 1-7/8-inch flute length and matching 3/4-inch shank and cutting diameter, the tool maintains rigid support close to the cutting edge.

Key Features

• 90-degree point angle for accurate hole starting and reduced drill walking
• 3/4-inch cutting diameter with matching 3/4-inch straight cylindrical shank
• High speed steel construction for general purpose drilling performance
• Bright, uncoated finish — no coating buildup to affect dimensional accuracy
• 2-flute spiral geometry promotes chip evacuation during spotting
• Right-hand cutting direction, single-ended design

Compatibility

Designed as a general purpose spotting drill compatible with standard drill chucks and collet-style toolholders accepting a 3/4-inch straight cylindrical shank, suitable for use in manual drill presses and CNC machining centers.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Secure the straight shank firmly in a properly sized drill chuck or collet holder before operation, and verify runout before beginning a cut. Always bring the spindle to a full stop before changing tooling. Follow applicable shop safety procedures and machine manufacturer guidelines when operating drilling equipment.
