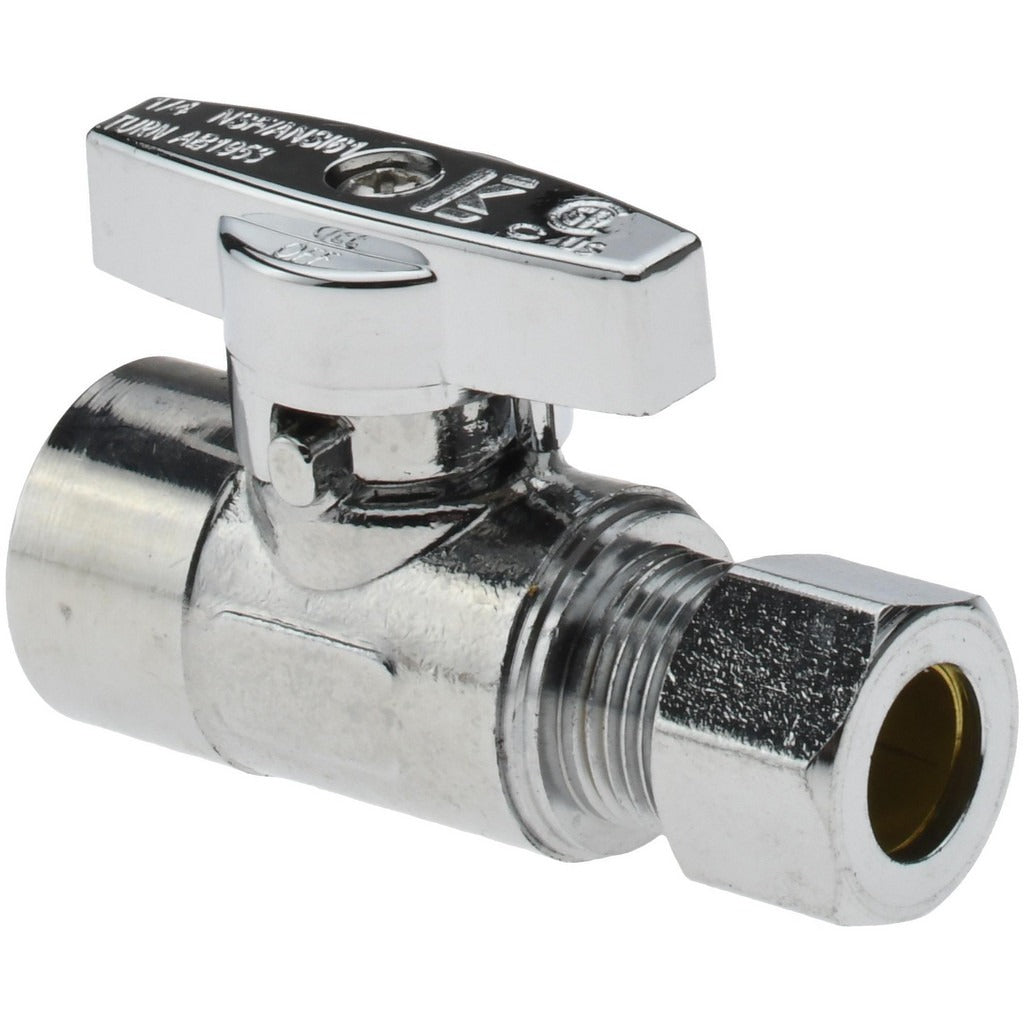

Value Collection 191-222HC Brass Stop Valve 125 Psi

Product Description

The VALUE COLLECTION 191-222HC is a straight-pattern water supply stop valve built for shutoff service in residential and light commercial plumbing systems. The body is machined brass with a chrome finish and a chrome handle. Inlet connection is 3/8 inch FIP (female iron pipe) and the outlet is 3/8 inch compression, making it compatible with standard supply-line configurations. Rated to 125 psi maximum working pressure, this valve is suited for under-sink, toilet, and appliance supply line applications. Licensed plumbers and experienced DIYers install this type of valve during fixture replacement, remodel rough-in, or emergency shutoff upgrades.

This stop valve is designed for any standard water supply shutoff application. Typical installations include connecting supply lines to lavatory faucets, kitchen faucets, toilets, ice makers, and similar fixtures where a local shutoff point is required. The straight valve body suits installations where the supply stub-out and the fixture supply line are in-line with each other. The FIP inlet threads onto a male-threaded wall or floor stub-out, and the compression outlet accepts standard 3/8 inch OD supply tubing.

Key Features

• Brass body construction for corrosion resistance in potable water service
• Chrome finish and chrome handle for a clean, finished appearance at exposed installations
• 3/8 inch FIP inlet threads directly onto standard male-threaded stub-outs
• 3/8 inch compression outlet accepts standard supply tubing without soldering
• 125 psi maximum working pressure suits residential water supply systems
• Straight body pattern for in-line supply configurations

Compatibility

Designed as an OEM-style replacement or new-installation stop valve for any water supply shutoff application using a 3/8 inch FIP inlet and 3/8 inch compression outlet connection.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson in accordance with local plumbing codes and the IPC. Shut off the main water supply and relieve pressure from the line before removing or installing any stop valve. Apply thread sealant tape or paste to the FIP inlet threads and tighten to snug-plus-hand-tight; do not overtighten brass fittings. Inspect the compression ferrule and nut for proper seating before restoring water pressure and checking for leaks.
