Value Collection 183-6098 Corner Rounding End Mill 3/4 in

Product Description

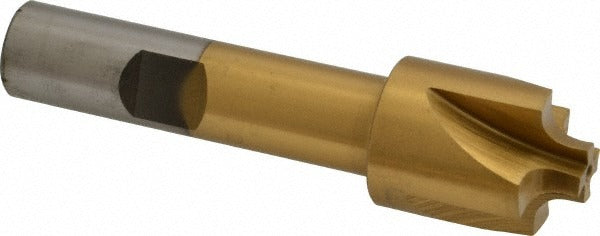

The VALUE COLLECTION 183-6098 is a single-end corner rounding end mill designed to produce consistent radius profiles on workpiece edges in milling applications. Built from M2 high speed steel and finished with a titanium nitride coating, it delivers improved wear resistance and tool life compared to uncoated HSS tooling. The cutter features a 9/64 inch radius, a 3/4 inch mill diameter, and four flutes arranged in a right-hand cutting, right-hand flute configuration. Overall length is 3 inches with a 1/2 inch shank diameter. This end mill is intended for use by machinists and toolmakers performing edge-profiling operations on metal and similar materials in manual or CNC milling setups.

This corner rounding end mill is suited for general-purpose milling work in job shops, tool rooms, and production environments. It is used to break sharp corners and mill uniform radius contours on ferrous and non-ferrous workpieces. The single-end design makes it appropriate for standard milling applications where one cutting end is sufficient. Its 1/2 inch shank fits commonly available collets and end mill holders on knee mills, bed mills, and CNC machining centers.

Key Features

• M2 high speed steel construction for strength and toughness across a wide range of milling materials
• Titanium nitride coating reduces friction and extends tool life
• 9/64 inch corner radius produces consistent edge profiles
• Four flutes provide a balance of chip clearance and surface finish quality
• Right-hand cut and right-hand flute direction for standard milling spindle operation
• Single-end design with 1/2 inch shank for compatibility with standard end mill holders

Compatibility

Designed as an OEM-style replacement or direct-use corner rounding end mill for standard milling machines and machining centers accepting a 1/2 inch shank end mill holder or collet.

Installation Notes

Installation should be performed by a qualified machinist following standard tooling setup procedures. Ensure the milling spindle is fully powered down and the machine is locked out before loading or changing tooling. Secure the shank fully within the collet or end mill holder and verify runout with an indicator before cutting. Follow machine manufacturer guidelines and applicable shop safety standards for feeds, speeds, and workholding when using HSS tooling.
