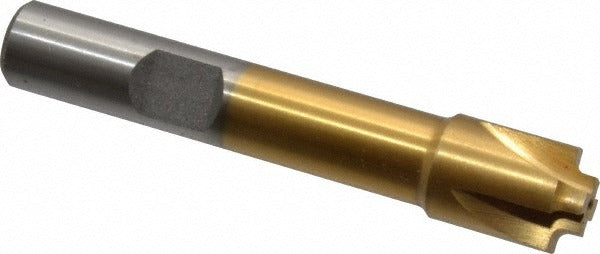

Value Collection 183-6031 Corner Rounding End Mill

Product Description

The VALUE COLLECTION 183-6031 is a single-end corner rounding end mill designed to machine smooth, consistent radius profiles on workpiece edges. Built from M2 high speed steel and coated with titanium nitride (TiN), it delivers improved wear resistance and surface finish compared to uncoated HSS tooling. The mill features a 3/64 inch corner radius, a 7/16 inch cutting diameter, and a 3/8 inch shank diameter. With 4 flutes and a right-hand cutting and flute direction, it suits a wide range of ferrous and non-ferrous milling operations. Machinists and tool-and-die professionals are the primary installers of this type of tooling.

This end mill is used in vertical and horizontal milling machines and machining centers for edge-breaking and radius-forming operations on production and prototype parts. It is well suited for both manual and CNC milling setups where a controlled corner radius is required to reduce stress concentration, improve part aesthetics, or meet engineering drawing callouts. Typical applications include die work, mold making, and general precision machining in job shop and production environments.

Key Features

• 3/64 inch corner radius for precise, consistent edge profiling
• M2 high speed steel construction for toughness across a range of materials
• Titanium nitride (TiN) coating extends tool life and reduces friction
• 4-flute, right-hand cut and right-hand flute geometry for efficient chip evacuation
• 3/8 inch shank diameter fits standard collets and end mill holders
• Single-end design for straightforward tool holding and setup

Compatibility

Designed as an OEM-style replacement or equivalent for standard corner rounding end mill applications in vertical mills and CNC machining centers accepting a 3/8 inch shank.

Installation Notes

This tool is installed by machinists using a compatible collet chuck or end mill holder rated for the 3/8 inch shank diameter. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Verify runout with an indicator after installation to confirm proper seating. Follow the machine manufacturer and tooling manufacturer guidelines for appropriate speeds and feeds for the workpiece material.
