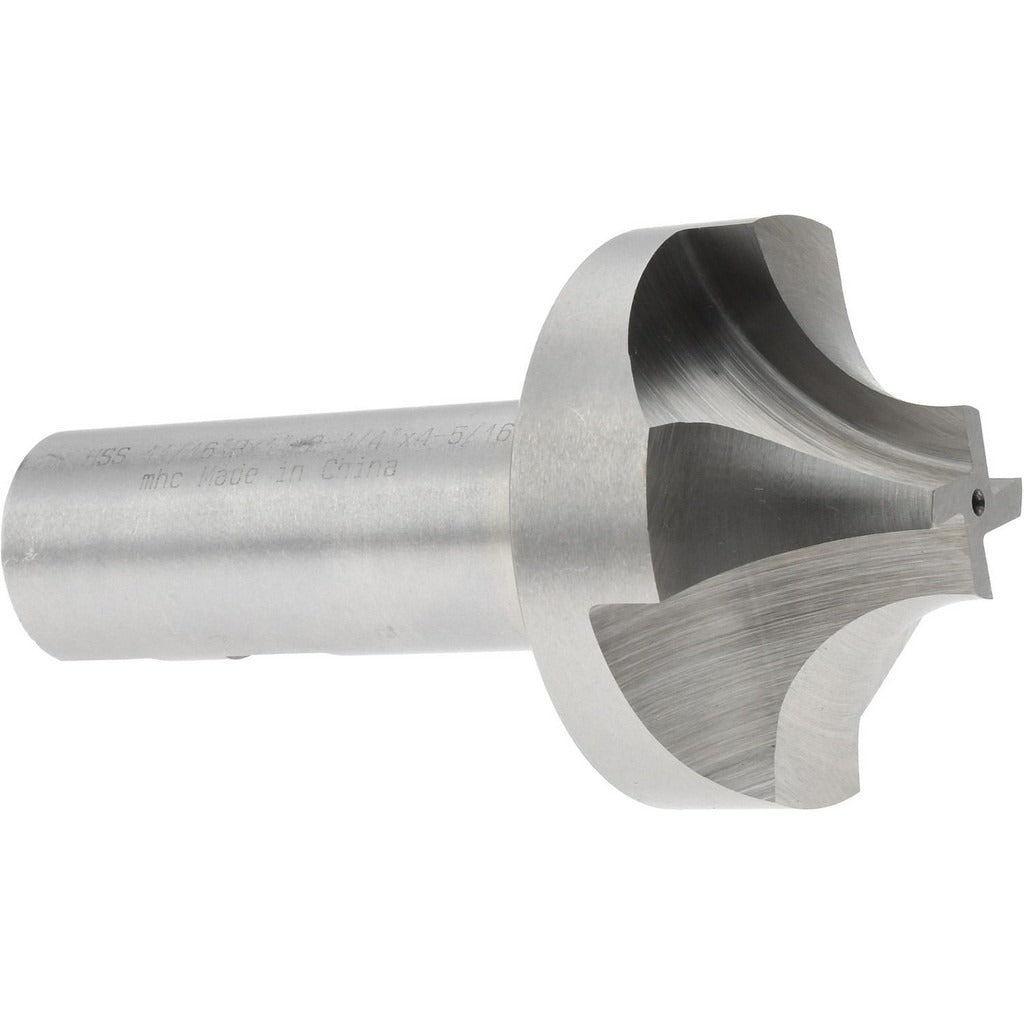

Value Collection 182-6445 Corner Rounding End Mill Hss

Product Description

The Value Collection 182-6445 is a single-end corner rounding end mill designed to machine a consistent radius profile on workpiece edges. Built from M2 high speed steel with a bright, uncoated finish, this tool runs in a right-hand cutting direction and is suited for use on a vertical or horizontal milling machine. It carries a 2.25-inch mill diameter and an 11/16-inch corner radius, making it a practical choice for medium-to-large radius edge-breaking operations on ferrous and non-ferrous materials. Machinists and toolroom operators use this style of end mill when a smooth, repeatable radiused edge is required without secondary filing or grinding.

This corner rounding end mill is applied in general machining, toolroom work, and production milling environments where edge conditioning is part of the part finish specification. The 1-inch shank diameter accommodates standard milling machine collets and end mill holders commonly found in job shops and manufacturing facilities. The 4-flute geometry provides a balance of chip clearance and surface finish suitable for moderate feed rates on steel, aluminum, and similar machinable alloys.

Key Features

• M2 high speed steel construction for durability across a range of machinable materials
• 11/16-inch corner radius for consistent, repeatable edge profiling
• 2.25-inch mill diameter supports medium-to-large radius passes
• 4-flute right-hand geometry balances chip evacuation and surface finish
• Bright, uncoated finish — compatible with most cutting fluids and oils
• Single-end design with a 1-inch shank diameter for standard toolholding

Compatibility

Designed as a standard single-end corner rounding end mill with a 1-inch shank diameter, suitable for use in milling machine collet chucks and end mill holders that accept 1-inch straight shanks.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the milling machine spindle is fully stopped and locked out before mounting or removing the tool. Verify the toolholder bore is clean and the drawbar or collet is torqued to the machine specification before engaging the spindle. Always confirm feed rate and spindle speed are appropriate for the workpiece material before cutting.
