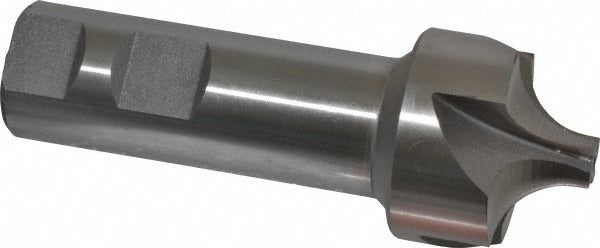

Value Collection 182-6320 Corner Rounding End Mill

Product Description

The VALUE COLLECTION 182-6320 is a single-end corner rounding end mill designed to produce consistent convex radius profiles on workpiece edges. Built from M2 high speed steel with a bright, uncoated finish, it operates with a 1/2-inch radius and a 1-1/2-inch mill diameter. The 4-flute configuration supports efficient chip evacuation while maintaining edge stability during profiling cuts. This tool is suited for machinists and toolmakers working in manual or CNC milling environments where edge-breaking and radius forming are required on ferrous and non-ferrous materials.

This end mill is appropriate for use in job shop, toolroom, and production milling applications. The 1-inch shank diameter accommodates standard milling machine collets and end mill holders. Right-hand cutting and right-hand flute direction make it compatible with conventional spindle rotation on vertical and horizontal milling machines. It is commonly used to round sharp part edges on steel, aluminum, brass, and similar materials where a defined radius is required by drawing or specification.

Key Features

• 1/2-inch corner radius for consistent edge profiling on milled parts
• M2 high speed steel construction provides good toughness and wear resistance in general-purpose milling
• 4-flute geometry supports smooth surface finish and stable cutting action
• Bright, uncoated finish suitable for a broad range of ferrous and non-ferrous workpiece materials
• Single-end design with right-hand cut and right-hand flute direction for standard spindle use
• 1-inch shank diameter fits common milling collets and end mill holders

Compatibility

Designed as a standard single-end corner rounding end mill compatible with milling machines accepting a 1-inch shank diameter via collet, end mill holder, or milling chuck.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank fully in the tool holder to the recommended engagement depth per the holder manufacturer before tightening. Verify spindle rotation direction matches the right-hand cut specification before engaging the workpiece. Inspect the cutting edges for chips or damage before each use and do not exceed the tool's rated cutting parameters for the workpiece material.
