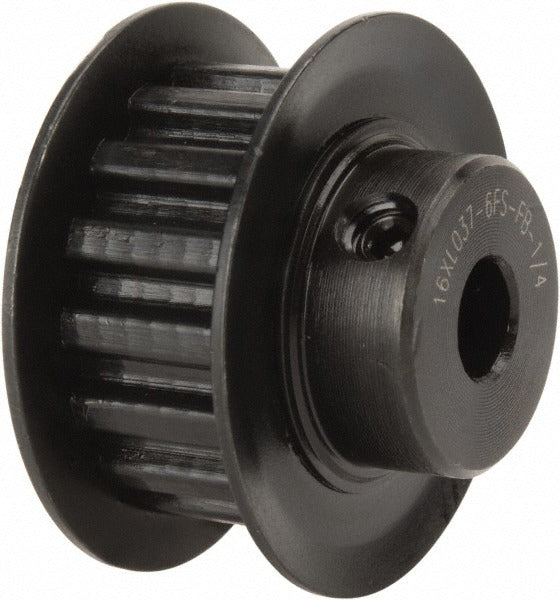

Value Collection 16XL0376FSFB1/4 Timing Belt Pulley

Product Description

The VALUE COLLECTION 16XL0376FSFB1/4 is a 16-tooth timing belt pulley designed for use with XL-profile synchronous drive belts. It features a 1/4-inch bore and a 1-inch outside diameter, with a pitch diameter of 1.019 inches. The pulley accommodates belt widths of 1/4 inch and 3/8 inch, making it compatible with standard XL-series belt widths common in light-duty mechanical drive applications. Constructed from steel or cast iron, this pulley delivers reliable torque transfer in precision timing drive systems. It is typically installed by mechanical technicians and maintenance professionals working on conveyor, actuator, or motion-control assemblies.

This timing belt pulley is suited for light-duty to medium-duty synchronous drive systems where accurate positioning and consistent belt engagement are required. Typical applications include small conveyor lines, automation equipment, and linear actuator assemblies found in industrial and commercial settings. The XL belt profile designation corresponds to a 0.200-inch pitch, a widely used standard in fractional-horsepower drive systems. This pulley is sold individually and is well-suited for replacement or new-build drive configurations.

Key Features

• 16-tooth XL-profile pulley for accurate synchronous belt drive engagement
• 1/4-inch bore diameter for direct shaft mounting on small drive shafts
• 1.019-inch pitch diameter for consistent belt wrap and tooth mesh
• Compatible with both 1/4-inch and 3/8-inch wide XL timing belts
• Steel and cast iron construction for durability in industrial drive applications
• Sold individually with a minimum order quantity of 1

Compatibility

Designed for use with XL-profile synchronous timing belts in 1/4-inch and 3/8-inch widths. Suitable as an OEM-style replacement or new-installation component in light- to medium-duty mechanical drive systems using the XL belt trade size standard.

Installation Notes

Installation is typically performed by a mechanical technician or maintenance professional. De-energize and lock out the drive system before removing or installing any pulley. Verify shaft diameter matches the 1/4-inch bore before installation, and ensure the belt profile and pitch match the XL standard before assembling the drive. Consult applicable machinery and drive manufacturer guidelines for shaft retention and belt tensioning procedures.
