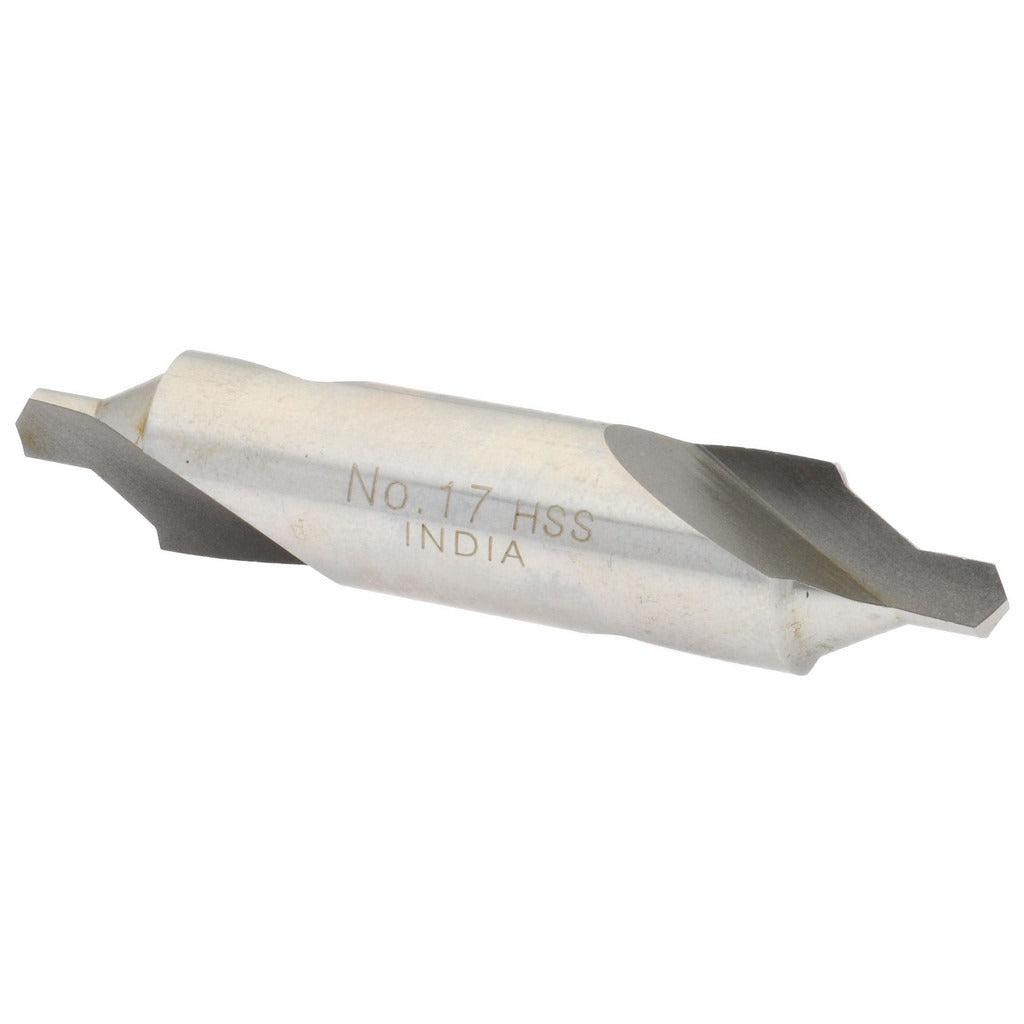

Value Collection 157400017000000 Drill Countersink Size 17

Product Description

The VALUE COLLECTION 157400017000000 is a combination drill and countersink designed for simultaneous drilling and countersinking in a single pass. Built from high-speed steel with a bright, uncoated finish, this tool features a No. 17 trade size with a 5/8 inch body diameter and a 7/32 inch drill point diameter. The 118-degree drill point angle and 60-degree included angle on the bell countersink make it well suited for creating clean, flush-seat holes in metal, wood, and composite materials. The right-hand cutting direction and double end type add versatility for standard machining and fabrication setups.

This combo drill countersink is used in metal fabrication shops, production machining environments, and general maintenance applications where countersunk fastener holes are required. It is appropriate for use in drill presses, milling machines, and CNC setups. The 3.25 inch overall length accommodates standard toolholders and collet chucks commonly found in trade and industrial settings. Machinists, tool and die workers, maintenance technicians, and fabricators are the typical end users for this style of cutting tool.

Key Features

• Combination drill and countersink removes the need for a separate countersinking step
• High-speed steel construction provides durability across a range of workpiece materials
• 118-degree drill point angle suits general-purpose drilling in metal and wood
• 60-degree included bell angle for standard countersunk fastener seating
• Bell cutting edge style with 0.500 inch bell diameter
• Double end type extends usable tool life
• Right-hand cut, non-tapered design for straightforward setup

Compatibility

Designed as a standard combination drill countersink for use in drill presses, milling machines, and CNC equipment accepting toolholders sized for a 5/8 inch body diameter shank.

Installation Notes

Installation is performed by machinists or maintenance technicians using standard toolholding equipment. Secure the tool firmly in the collet or chuck before operation and verify spindle speed is appropriate for the workpiece material and tool diameter. Ensure the machine is fully powered down and the spindle is locked before changing or adjusting the tool. Do not exceed the tool material rating when selecting cutting speeds or feeds.
