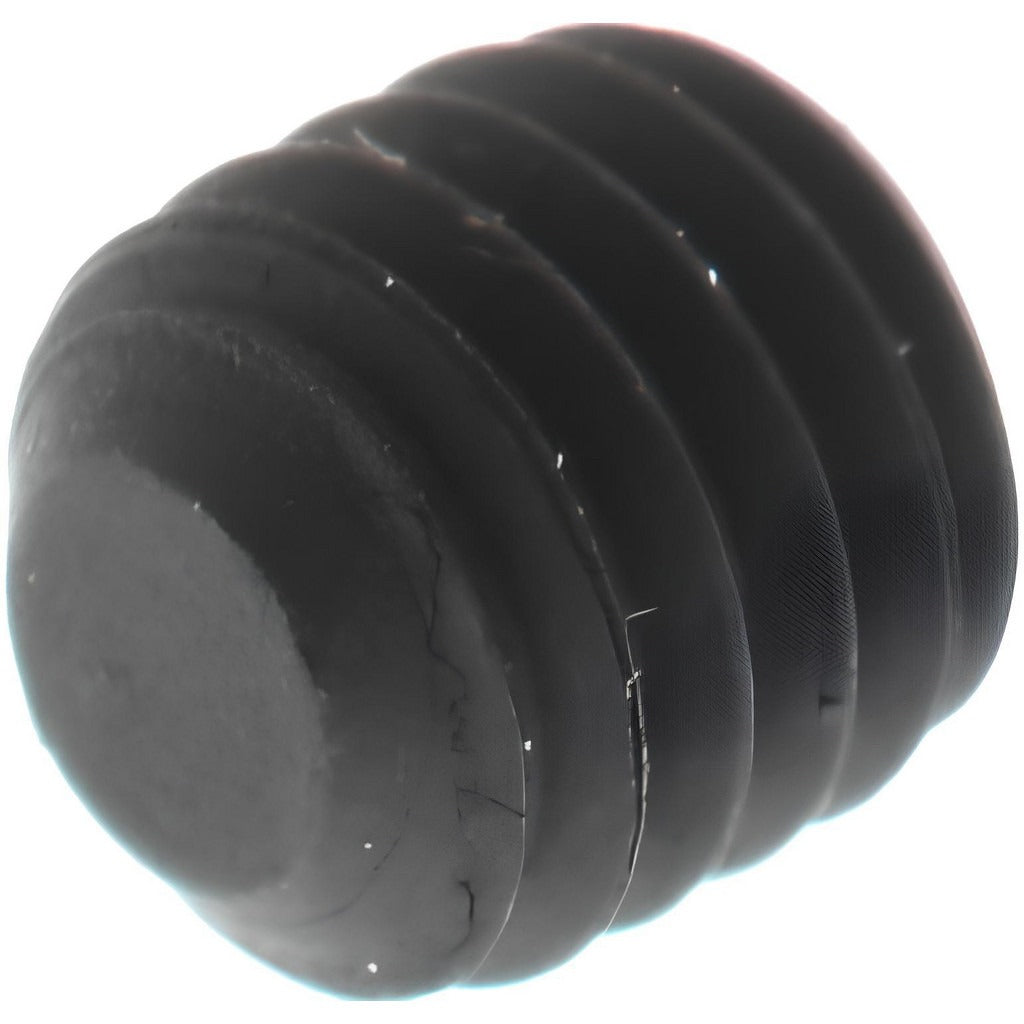

Value Collection 151197PR Set Screw 10-32 X 3/16 in Flat Point

Product Description

The VALUE COLLECTION 151197PR is a 10-32 x 3/16 inch flat point set screw manufactured from Grade 8 alloy steel. Set screws are fully threaded fasteners with no head — they seat flush or below the surface of the mating part and are driven with a hex key. This screw uses a 3/32 inch hex drive and is designed to lock components such as collars, pulleys, and gears onto shafts or into bores. Grade 8 alloy steel provides high tensile strength for applications that demand a secure, vibration-resistant hold. This fastener conforms to ASME/ANSI B18.3 and ASTM F912 standards.

Flat point set screws are used where the mating surface must not be marred or where distributed clamping force across a shaft is preferred over a point or cup engagement. Typical applications include collar-to-shaft locking, setscrew-style shaft couplings, and mechanical assemblies in industrial, HVAC equipment, and general trade applications. Minimum order quantity is 100 pieces per order.

Key Features

• 10-32 UNF thread size, 3/16 inch overall length
• Flat point tip distributes load and reduces shaft damage
• Grade 8 alloy steel construction for high tensile strength
• 3/32 inch hex drive (0.0938 inch decimal)
• Conforms to ASME/ANSI B18.3 and ASTM F912 standards
• Fractional inch measurement type, fully threaded headless design

Compatibility

Designed as an OEM-style replacement or stock fastener for mechanical assemblies requiring a 10-32 UNF flat point set screw with a 3/32 inch hex drive and Grade 8 alloy steel construction.

Installation Notes

Installation is performed with a 3/32 inch hex key or Allen wrench. Ensure the threaded bore is clean and free of debris before driving the screw. Power down or de-energize any equipment before accessing rotating assemblies or shaft components. Do not exceed the rated torque range for 10-32 Grade 8 fasteners as specified by the equipment manufacturer.
