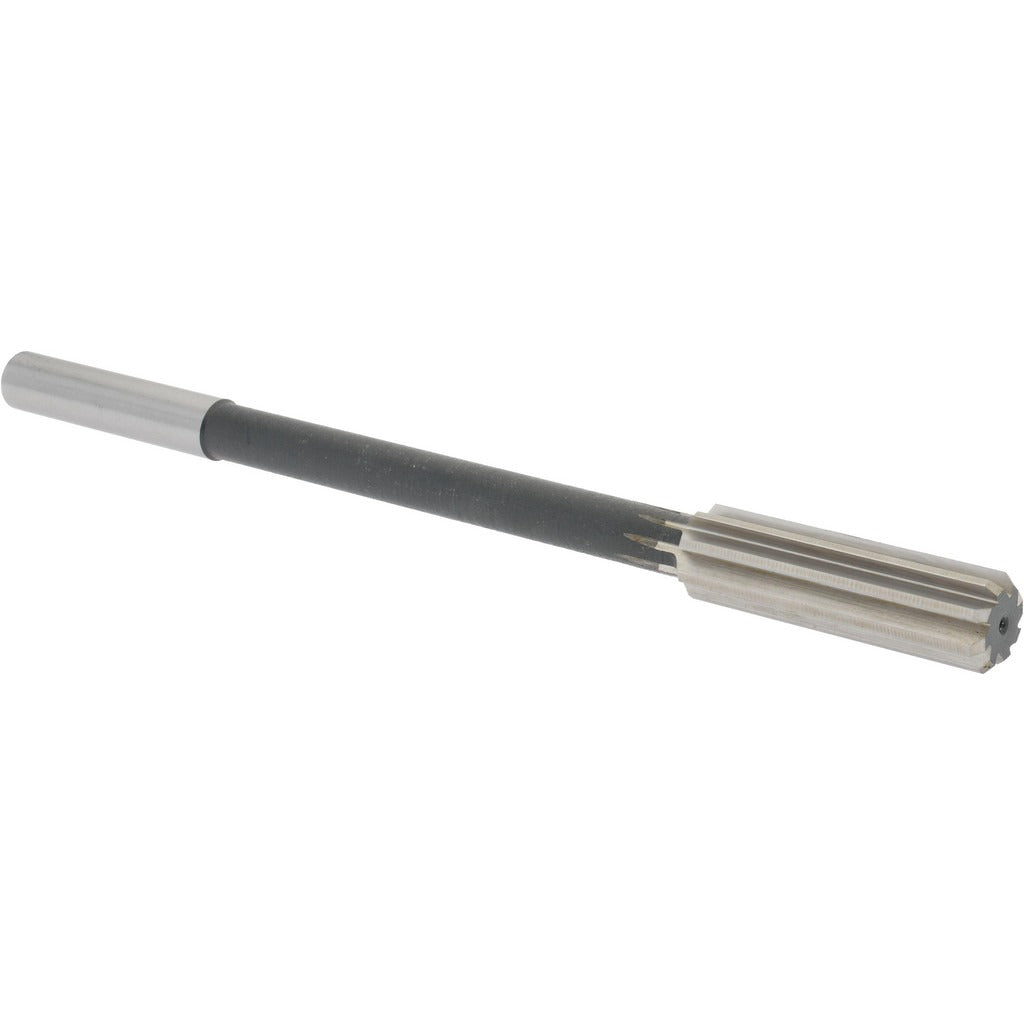

Value Collection 144429605910000 Chucking Reamer Hss

Product Description

The VALUE COLLECTION 144429605910000 is a chucking reamer designed to finish-ream drilled or bored holes to a precise 0.5910-inch diameter. Manufactured from high-speed steel (HSS), it delivers consistent cutting performance across a broad range of workpiece materials including mild steels, aluminum, and plastics. The straight-cylindrical shank seats directly in a drill press chuck, lathe tailstock, or CNC turret without the need for a Morse taper adapter. Eight straight flutes provide smooth chip evacuation and uniform surface finish. The bright, uncoated finish is suited to general-purpose reaming at moderate speeds and feeds. This tool is sold individually and is intended for use by machinists, tool-and-die workers, and maintenance technicians.

This chucking reamer is applied wherever a hole must be brought to close dimensional tolerance after drilling or rough boring. Common installation scenarios include bearing-bore finishing, pin-fit preparation, and precision assembly work in machine shops, maintenance facilities, and fabrication environments. The 0.5910-inch diameter falls within the 0.5000 to 0.6999-inch decimal-inch reamer range, making it a standard selection for half-inch-class hole finishing. Right-hand cutting direction is compatible with conventional spindle rotation on drill presses, lathes, and machining centers.

Key Features

• 0.5910-inch finished-hole diameter for close-tolerance reaming in the 0.5000 to 0.6999-inch range
• HSS construction provides durability across mild steel, aluminum, cast iron, and plastic workpieces
• 8 straight flutes promote smooth chip flow and consistent bore finish
• Straight-cylindrical shank fits standard drill chucks, lathe tailstocks, and CNC turret holders directly
• Bright, uncoated finish for general-purpose use at standard cutting speeds
• Right-hand cutting direction matches conventional machine spindle rotation

Compatibility

Designed as a general-purpose chucking reamer compatible with any drill press, engine lathe, or machining center spindle that accepts a straight-cylindrical shank tool of this diameter range.

Installation Notes

A licensed machinist or qualified maintenance technician should install and operate this reamer. Always power down and lock out the machine spindle before loading or removing the tool from the chuck or collet. Use proper cutting fluid for the workpiece material to extend tool life and improve surface finish. Do not reverse spindle direction while the reamer is engaged in the bore, as reverse rotation will damage the cutting edges.
