Value Collection 144429602364000 Chucking Reamer Hss

Product Description

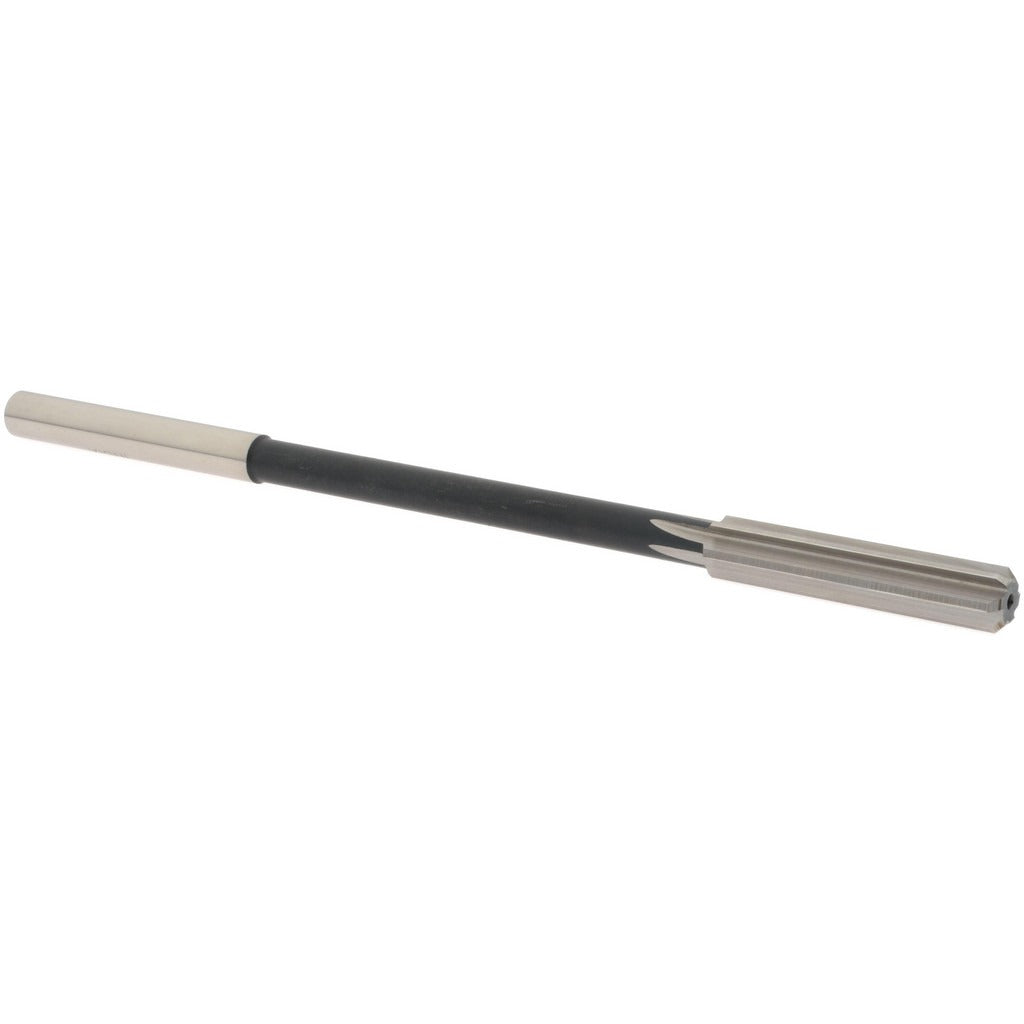

The VALUE COLLECTION 144429602364000 is a straight-flute chucking reamer designed to finish-ream drilled holes to a precise diameter. Built from high-speed steel (HSS), it delivers the hardness and edge retention needed for accurate sizing in ferrous and non-ferrous materials. The reamer measures 0.3594 decimal inches (23/64 inch) in cutting diameter, with an overall length of 7 inches and a 1-3/4 inch flute length. The straight-cylindrical shank seats securely in a drill chuck or collet. Machinists and tool-and-die technicians use this tool to bring bored or drilled holes to finished tolerance in production and maintenance environments.

This chucking reamer is suited for bench drill presses, milling machines, and CNC drilling operations where a consistent finish diameter in the 0.3500 to 0.3999 inch range is required. It is a standard OEM-geometry tool appropriate for general machining tasks in job shops, maintenance repair operations, and light manufacturing. The straight flute design works well in through-hole and short blind-hole applications where chip evacuation is not a limiting factor.

Key Features

• HSS construction provides hardness and wear resistance for extended tool life in common shop materials
• Straight-cylindrical shank fits standard drill chucks and collets without modification
• 0.3594 inch (23/64 inch) cutting diameter for precise hole finishing in the 0.3500 to 0.3999 inch range
• 1-3/4 inch flute length suits typical through-hole and shallow blind-hole applications
• 7 inch overall length provides clearance for most standard drill press and mill setups
• Straight flute geometry simplifies regrinding and maintenance

Compatibility

Designed as a standard chucking reamer for use in any drill press, milling machine, or CNC machining center equipped with a chuck or collet capable of accepting a straight-cylindrical shank in the 23/64 inch diameter range.

Installation Notes

A licensed machinist or qualified tool operator should install and use this reamer following shop safety protocols. Secure the shank fully in the chuck or collet before operation, and ensure the workpiece is clamped or fixtured to prevent movement. Use appropriate cutting fluid for the workpiece material to extend tool life and achieve finish tolerance. Inspect the cutting edges for chipping or wear before each use and replace or regrind as needed.
