Value Collection 144429602290000 Chucking Reamer Hss

Product Description

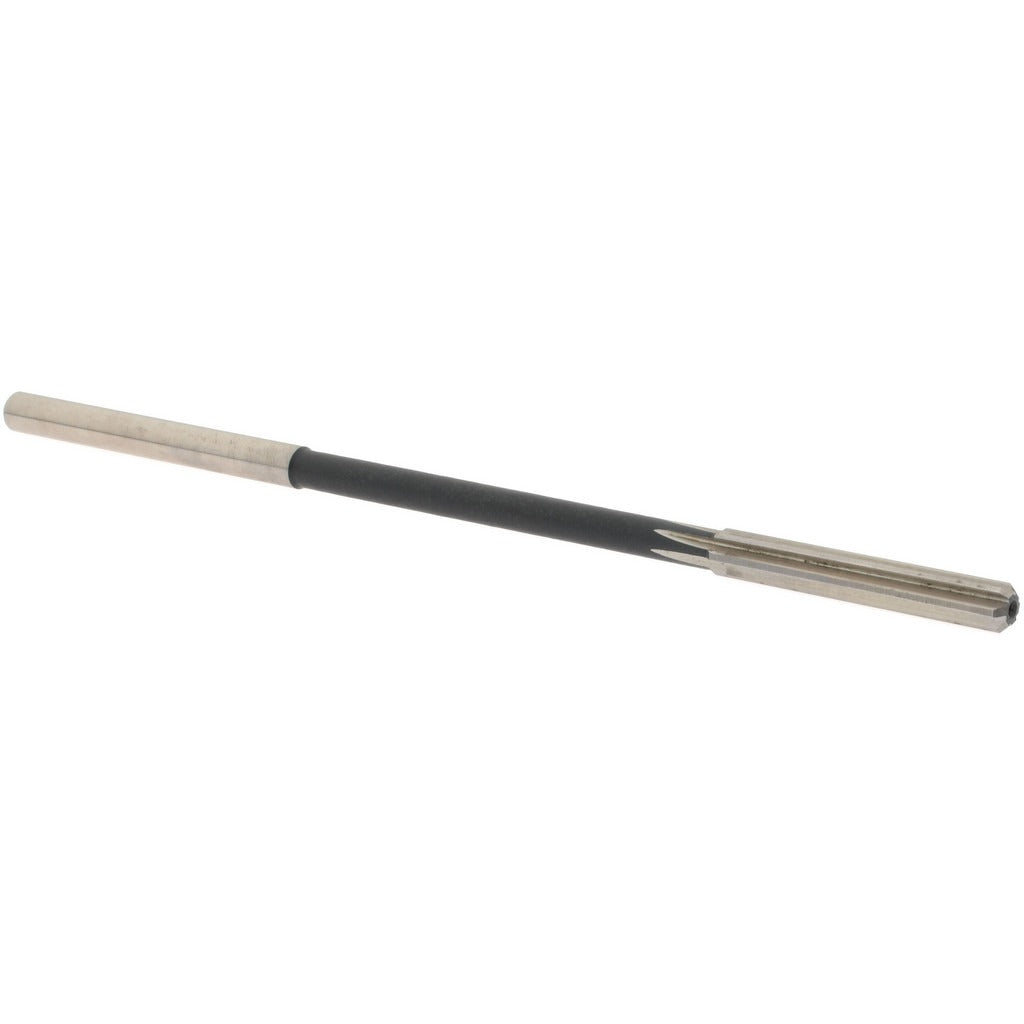

The VALUE COLLECTION 144429602290000 is a high-speed steel (HSS) chucking reamer designed to finish-ream drilled or bored holes to a precise 0.2290-inch diameter. Six straight flutes remove material evenly and produce a clean, accurate bore surface. The straight-cylindrical shank seats securely in a drill chuck or collet on a drill press, lathe, or milling machine. This reamer is suited for machinists, tool and die makers, and maintenance technicians who need reliable hole finishing at close tolerances without specialty tooling.

This chucking reamer is used in light to medium metalworking applications where a drilled hole must be brought to a finished dimension with consistent roundness and surface finish. It falls within the 0.2000-to-0.2499-inch decimal inch diameter range, making it a standard fractional-range selection for general-purpose reaming on ferrous and non-ferrous materials. Typical applications include fixture building, jig plate work, dowel pin hole preparation, and general machine shop hole finishing operations.

Key Features

• HSS construction provides good wear resistance and toughness across a range of workpiece materials
• Six straight flutes for smooth, even material removal and consistent bore finish
• Straight-cylindrical shank compatible with standard drill chucks and collet holders
• 0.2290-inch finished diameter for close-tolerance hole sizing
• Not configured as a dowel pin reamer or over/under size reamer — designed for standard on-size finishing

Compatibility

Designed as a standard chucking reamer for use in drill presses, lathes, and milling machines equipped with a drill chuck or collet capable of accepting a straight-cylindrical shank in the 0.2000-to-0.2499-inch reamer diameter range.

Installation Notes

Secure the straight-cylindrical shank firmly in a chuck or collet before operation and verify runout is within acceptable limits for the tolerance required. Always use an appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Feed rate and spindle speed should follow standard HSS reaming guidelines for the material being cut — excessive feed or speed will reduce tool life and bore accuracy. Handle cutting edges with care; contact with hard surfaces can chip the flutes.
