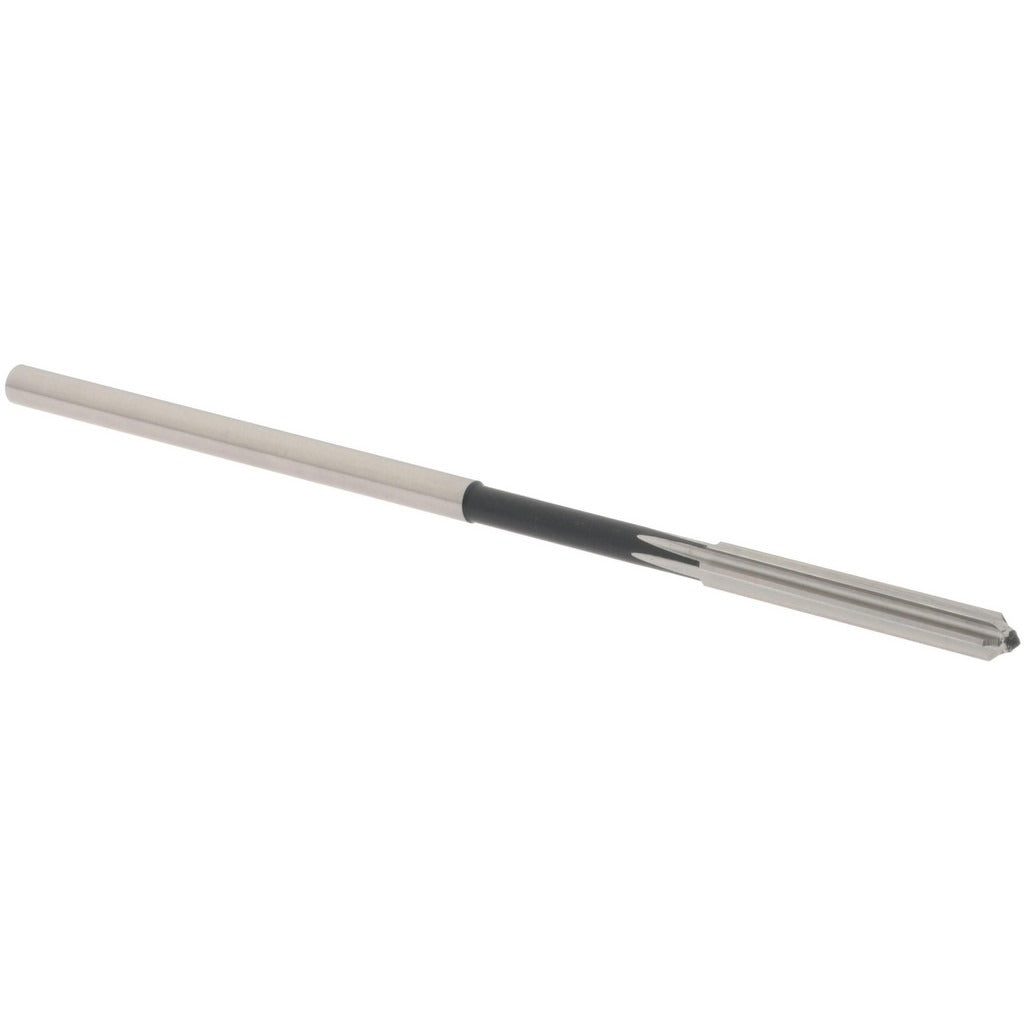

Value Collection 144429600023000 Chucking Reamer Hss

Product Description

The VALUE COLLECTION 144429600023000 is a straight-flute chucking reamer manufactured from high-speed steel (HSS) for finishing drilled holes to a precise diameter. Sized to wire gauge No. 23, it cuts to a decimal diameter of 0.154 inches with a right-hand cutting direction. The bright, uncoated HSS construction handles general-purpose reaming in a wide range of ferrous and non-ferrous materials. With an overall length of 4 inches and a 1-inch flute length, this reamer is sized for use in drill presses, lathes, and CNC machining centers with a standard straight-cylindrical shank for secure chuck holding.

This chucking reamer is suited for machine shop, maintenance, and toolroom applications where a No. 23 wire-size finished hole is required. The straight-cylindrical shank mounts directly in a drill chuck or collet without an adapter. Right-hand cutting geometry keeps it compatible with conventional clockwise-rotation spindles. It is appropriate for machinists, tool-and-die makers, and maintenance technicians working on close-tolerance hole finishing in production or repair settings.

Key Features

• Wire gauge No. 23 sizing — 0.154 inches decimal diameter for precise hole finishing
• HSS construction provides durability across a broad range of workpiece materials
• Straight flute geometry suits most general-purpose reaming applications
• Bright, uncoated finish — no coating to add dimensional uncertainty to the cutting edge
• Straight-cylindrical shank for direct mounting in standard drill chucks and collets
• Right-hand cutting direction compatible with standard clockwise-rotation machine spindles

Compatibility

Designed as a general-purpose chucking reamer for use in drill presses, lathes, and CNC machining centers equipped with a drill chuck or collet capable of holding a straight-cylindrical shank at the specified diameter.

Installation Notes

Chucking reamers are installed and operated by machinists and toolroom technicians. Power down the machine and verify the spindle is fully stopped before mounting or removing the reamer from the chuck or collet. Secure the shank firmly to prevent slippage, which can damage the cutting edges or the workpiece bore. Use appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish.
