Value Collection 13L0756FSFB1/2 Timing Belt Pulley 13T

Product Description

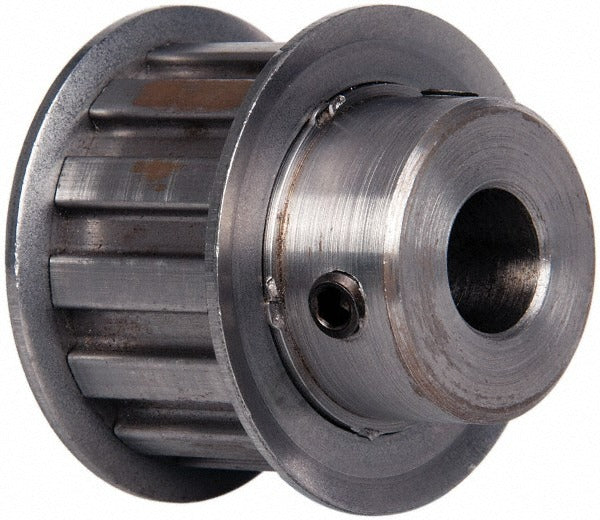

The VALUE COLLECTION 13L0756FSFB1/2 is a 13-tooth timing belt pulley designed for synchronous drive applications in mechanical and industrial power transmission systems. It features a 1/2-inch bore, a 1.522-inch outside diameter, and a 1.552-inch pitch diameter. The pulley is constructed from steel cast iron for durability under continuous rotational loads. It is sized for L-series timing belts with a 3/4-inch belt width. Millwrights, maintenance technicians, and mechanical contractors install this type of component in conveyor systems, machine drives, and other precision timing applications where belt slip cannot be tolerated.

This pulley is suited for use in fixed-speed and variable-timing mechanical drive assemblies. The L-series designation corresponds to a standard tooth pitch, making it compatible with L-profile synchronous belts commonly found in light industrial machinery, automation equipment, and HVAC blower drive systems. The 1/2-inch bore accommodates standard shaft sizing found across a wide range of drive configurations. Sold individually, it is appropriate for single-pulley replacement or new drive assembly builds.

Key Features

• 13 teeth for precise synchronous timing with L-series belts
• 1/2-inch bore fits standard shaft diameters in light industrial drives
• 1.552-inch pitch diameter for accurate belt-speed calculations
• 3/4-inch belt width capacity matches standard L-profile belt widths
• Steel cast iron construction resists wear under continuous rotational load
• L-series tooth profile provides positive engagement without slippage

Compatibility

Designed as a replacement or new-build component for mechanical drive systems using L-series synchronous timing belts with a 3/4-inch width and a 1/2-inch shaft bore.

Installation Notes

Installation is typically performed by a millwright or qualified mechanical technician. Disconnect and lock out all power to the drive system before removing or installing any pulley. Ensure the shaft is clean and free of burrs before pressing or sliding the pulley into position. Verify belt tension and pulley alignment after installation to prevent premature belt or bearing wear.
