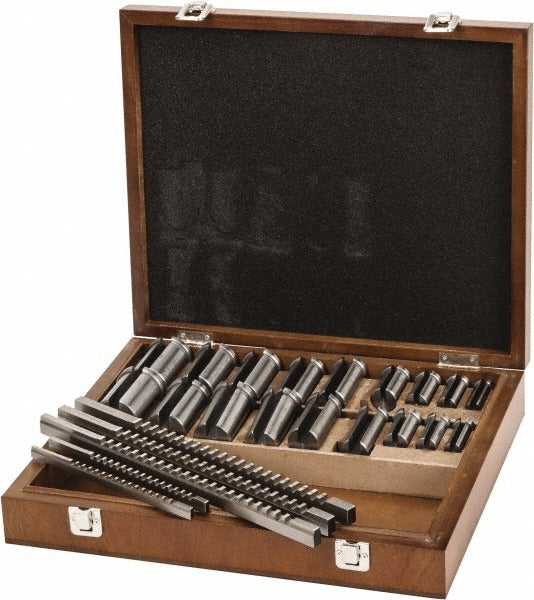

Value Collection 1395-0730 Style B C Keyway Broach Set

Product Description

The VALUE COLLECTION 1395-0730 is a 30-piece Style B and C keyway broach set designed for cutting precision keyways in a range of bore sizes. Manufactured from high speed steel with a bright polished finish, these broaches deliver clean, accurate cuts in ferrous and non-ferrous materials. The set covers keyway widths from 1/8 inch to 3/8 inch and is paired with collared bushings ranging from 1/2 inch to 1-9/16 inch in diameter. Seven shims are included to allow incremental depth adjustment during the broaching process. This set is intended for use by machinists, tool and die makers, and maintenance technicians performing keyway operations on shafts and hubs.

This broach set is suited for production and maintenance environments where multiple keyway sizes are required across a variety of workpiece bores. Style B and C broaches are commonly used in rotary broaching applications on manual arbor presses and hydraulic presses. The included collared bushings guide the broach through the bore to maintain alignment and protect the workpiece. The range of bushing diameters makes this set practical for light to mid-range shaft and hub keyway work found in industrial machinery, conveyor systems, gear assemblies, and pump drive components.

Key Features

• High speed steel construction for durability and edge retention across a range of workpiece materials
• Bright polished finish reduces friction and aids chip evacuation during the broaching pass
• Covers keyway widths from 1/8 inch to 3/8 inch in a single 30-piece set
• Collared bushings included, spanning 1/2 inch to 1-9/16 inch bushing diameter
• 7 shims included for incremental depth-of-cut control
• Style B and C broach profiles for broad application coverage

Compatibility

Designed for use with standard arbor presses and hydraulic broaching presses that accept Style B and C keyway broach tooling with collared bushing guidance systems.

Installation Notes

Keyway broaching is typically performed by machinists or qualified maintenance technicians using an arbor press or hydraulic press. Ensure the workpiece is securely fixtured and the broach is properly aligned with the collared bushing before applying press force. Never side-load the broach or attempt to rotate it during the cutting stroke. Apply cutting fluid appropriate for the workpiece material to extend broach life and improve surface finish.
