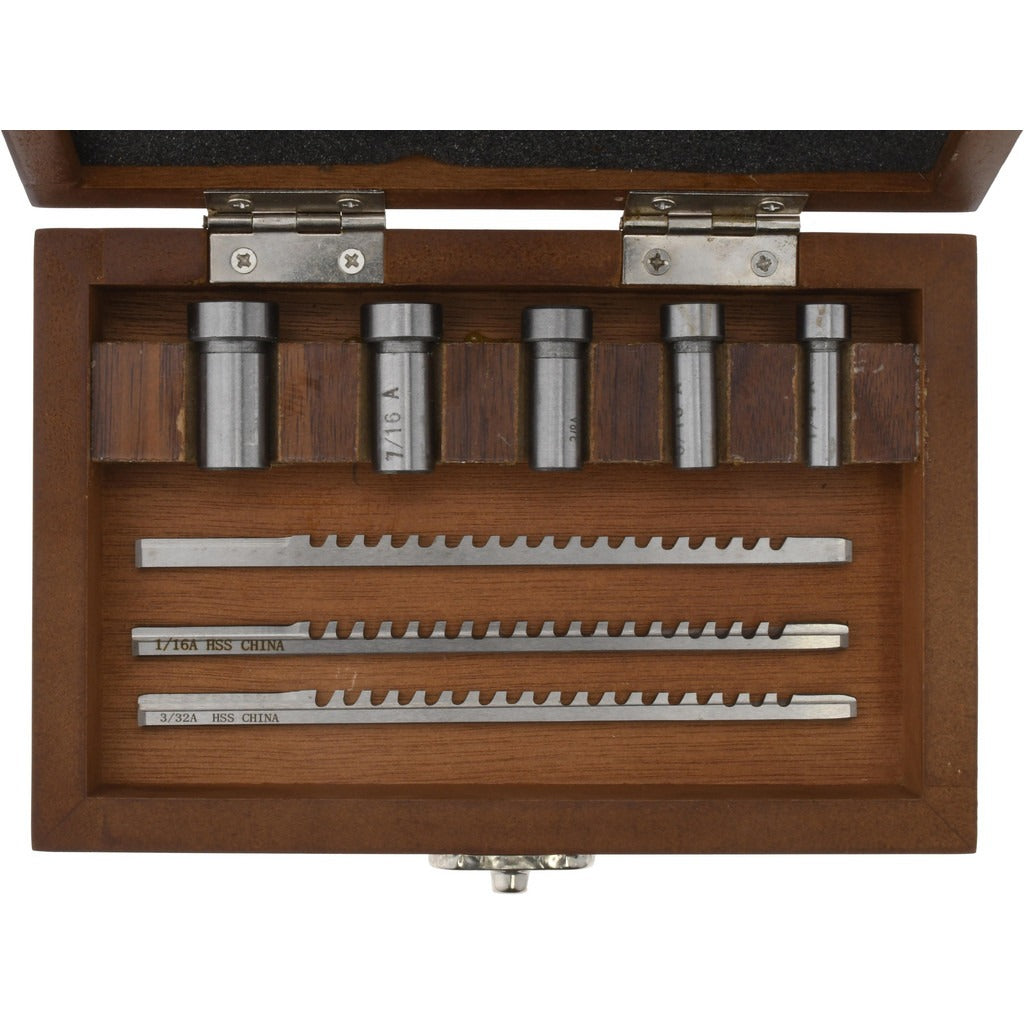

Value Collection 1395-0109 Style a Keyway Broach Set

Product Description

The VALUE COLLECTION 1395-0109 is an 8-piece Style A keyway broach set designed for cutting precision keyways in bores across a range of bushing sizes. The set uses high-speed steel broaches with a bright, uncoated finish for durability and clean cutting performance. Compatible collared bushings cover 1/4 to 1/2 inch diameters, and each broach requires one shim during operation. This set is used by machinists, tool and die technicians, and maintenance professionals who need to cut keyways to exact tolerances in hubs, gears, sprockets, and similar components.

The 1395-0109 is suited for machine shop environments and production maintenance settings where standard Style A keyway profiles are required. Keyway widths range from 1/16 to 1/8 inch, covering common small-bore keyway applications. The included collared bushings guide the broach through the bore and help maintain alignment during the broaching stroke. This set is appropriate for both manual arbor presses and hydraulic press applications.

Key Features

• 8-piece set covering keyway widths from 1/16 to 1/8 inch
• Style A broach profile for standard keyway cutting applications
• High-speed steel construction for wear resistance and cutting durability
• Bright uncoated finish suitable for general-purpose machining
• Collared bushings included, sized from 1/4 to 1/2 inch diameter
• One shim required per broach pass, compatible with standard shim sets

Compatibility

Designed for use with Style A keyway broaching setups requiring collared bushings in the 1/4 to 1/2 inch diameter range. Vendor set number is No. 00.

Installation Notes

Keyway broaching is typically performed by a machinist using an arbor press or hydraulic press. Ensure the workpiece is firmly fixtured and the bushing is seated squarely in the bore before applying press force. Always use the correct number of shims as specified for each broach size to maintain proper cutting depth and avoid tool damage. Follow applicable shop safety procedures when operating pressing equipment.
