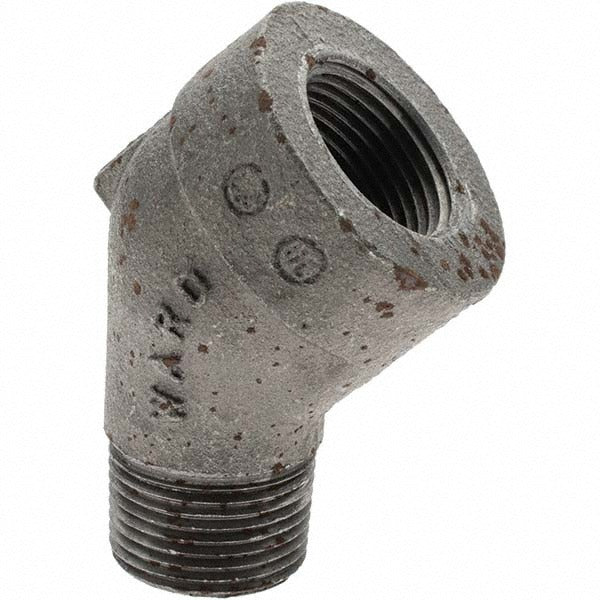

Value Collection 13534 45 Deg Street Elbow 3/4 in Malleable Iron

Product Description

The VALUE COLLECTION 13534 is a 3/4 inch malleable iron 45 degree street elbow finished in black and rated Class 300. It is used to change pipe direction at a 45 degree angle in threaded piping assemblies carrying liquid or gas. One end accepts a male threaded pipe while the other end is female threaded, allowing a direct inline connection without a separate pipe nipple. The Class 300 rating and 1500 psi pressure capacity make it suitable for demanding service conditions. This fitting is a standard component in commercial and industrial piping systems installed by licensed plumbers and pipefitters.

This street elbow is suited for use in threaded black iron piping systems commonly found in gas distribution, steam, air, and water service applications. The black finish is standard for gas piping installations in both commercial and residential settings. Its malleable iron construction provides the ductility needed to withstand mechanical stress and vibration in active piping systems. Plumbers, pipefitters, and mechanical contractors typically install this fitting during new construction or retrofit work on threaded pipe systems.

Key Features

• 45 degree street elbow configuration for directional changes without a separate nipple
• 3/4 inch nominal size with threaded end connections
• Malleable iron construction for ductility and mechanical durability
• Class 300 rated with 1500 psi liquid and gas pressure rating
• Black finish standard for gas piping applications

Compatibility

Designed as an OEM-style replacement or standard component fitting for 3/4 inch threaded black iron piping systems used in gas, steam, air, and liquid service applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes including the International Fuel Gas Code and International Plumbing Code. Shut off and depressurize the piping system completely before disassembly or fitting installation. Apply appropriate thread sealant or PTFE tape to male threads before assembly. Do not over-tighten, as malleable iron fittings can crack if subjected to excessive torque.
