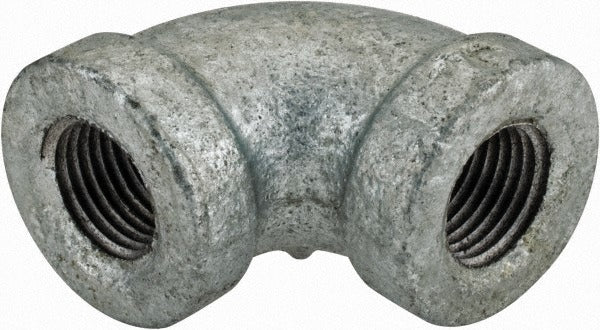

Value Collection 13000G 1/8 in Malleable Iron 90 Elbow Class 150

Product Description

The VALUE COLLECTION 13000G is a 90 degree threaded elbow fitting manufactured from malleable iron with a black galvanized finish. Rated at Class 150 with a liquid and gas pressure rating of 300 psi, this fitting is designed for use in low-pressure piping systems where a right-angle direction change is required. The 1/8 inch threaded end connections conform to standard NPT pipe thread dimensions. Plumbers, pipefitters, and HVAC technicians commonly use this type of fitting when assembling or repairing gas, air, or water distribution lines in both residential and light commercial applications.

This fitting is suited for small-diameter piping runs in residential and light commercial systems. Typical applications include natural gas branch lines, compressed air distribution, steam condensate lines, and low-pressure water supply connections. The 1/8 inch size is commonly used for instrumentation taps, pilot gas lines, pressure gauge connections, and similar small-bore service points where a 90 degree turn is required within a threaded pipe assembly.

Key Features

• 90 degree elbow configuration for right-angle pipe direction changes
• Malleable iron construction provides durability in moderate-pressure service
• Black galvanized finish for corrosion resistance
• Class 150 rated with 300 psi liquid and gas pressure rating
• Threaded end connections for standard NPT pipe assembly
• 1/8 inch fitting size for small-bore piping applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 1/8 inch NPT threaded pipe systems in Class 150 gas, air, and water service applications.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or HVAC technician in accordance with applicable local codes, IFGC, and IPC requirements. Shut off and depressurize the pipe system completely before disassembling any fittings or making connections. Apply an appropriate thread sealant or PTFE tape rated for the service medium before threading the fitting onto the pipe. Do not overtighten; hand-tight plus the appropriate number of turns with a pipe wrench is sufficient to achieve a leak-free seal on NPT threads.
