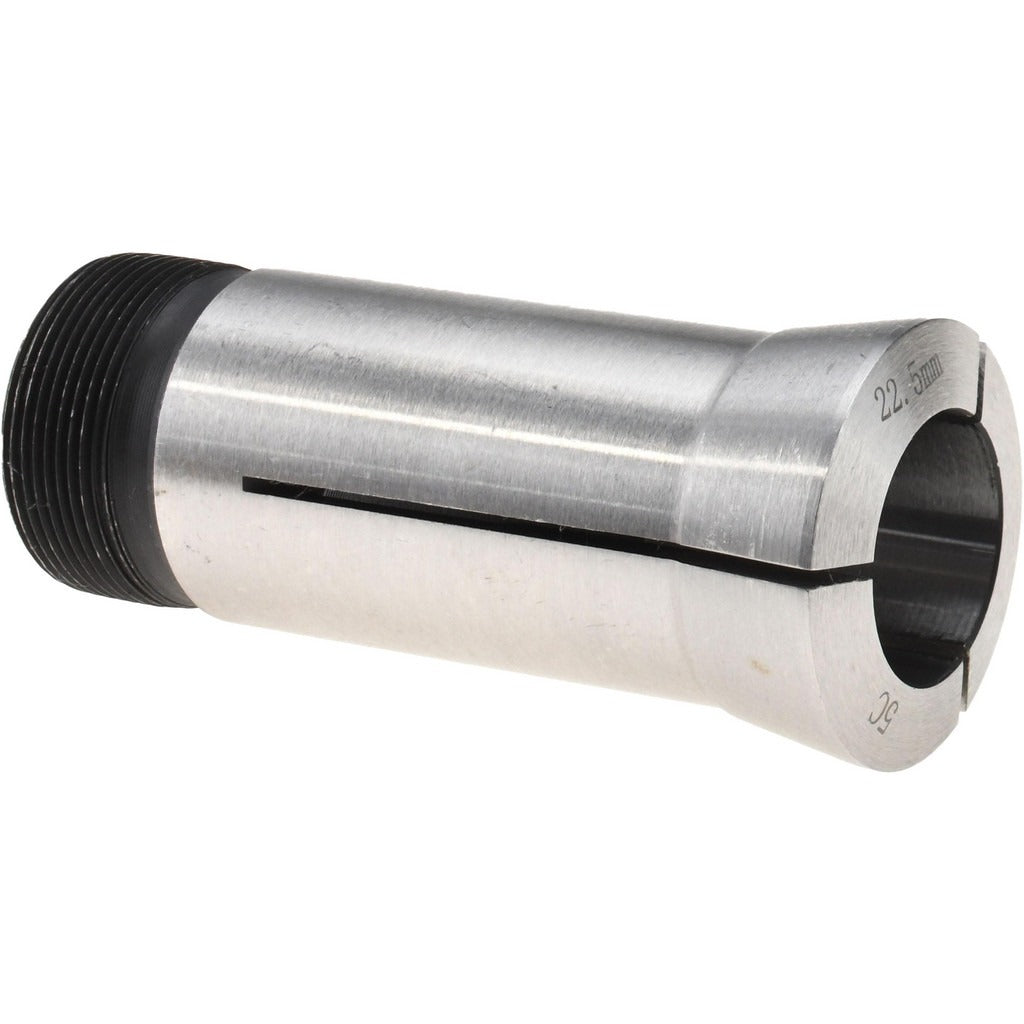

Value Collection 1230-4242 5C Round Collet 22.50mm

Product Description

The VALUE COLLECTION 1230-4242 is a 5C round collet machined from steel, designed for use in 5C-compatible spindles, collet chucks, and indexing fixtures found in turning, grinding, and milling operations. With a collet size of 22.50mm and a Total Indicator Runout (TIR) of 0.015mm, this collet delivers the concentricity required for precision workholding on production and tool-room equipment. The internal thread measures 1.041 inches at 24 threads per inch, and the external thread measures 1.242 inches at 20 threads per inch. Machinists and tool-room technicians install this collet as a direct workholding component when close-tolerance gripping of round stock is required.

This 5C round collet is suited for use on lathes, grinders, screw machines, and manual or CNC turning centers equipped with a standard 5C spindle. It accepts round workpieces at its rated 22.50mm grip size and is appropriate for both production-run environments and job-shop setups. Steel construction provides the rigidity and wear resistance expected in repetitive workholding applications. No specific model compatibility data was provided by the manufacturer for this part.

Key Features

• 22.50mm round collet size for gripping round-profile workpieces
• Steel construction for rigidity and long service life in production environments
• TIR of 0.015mm for precision concentricity in close-tolerance operations
• Internal thread: 1.041 inches - 24 TPI
• External thread: 1.242 inches - 20 TPI
• Compatible with standard 5C spindle systems across common machine tool platforms

Compatibility

Designed as an OEM-style replacement or direct-fit collet for machine tools equipped with a standard 5C spindle interface.

Installation Notes

5C collets are installed by qualified machinists or tool-room technicians. Before installing or removing a collet, ensure the machine spindle is fully stopped and the machine is locked out per applicable safety procedures. Use the appropriate collet closer or draw tube for your spindle; never force the collet into the spindle bore with impact tools. Inspect the collet bore and spindle taper for burrs or debris before seating to protect TIR performance.
