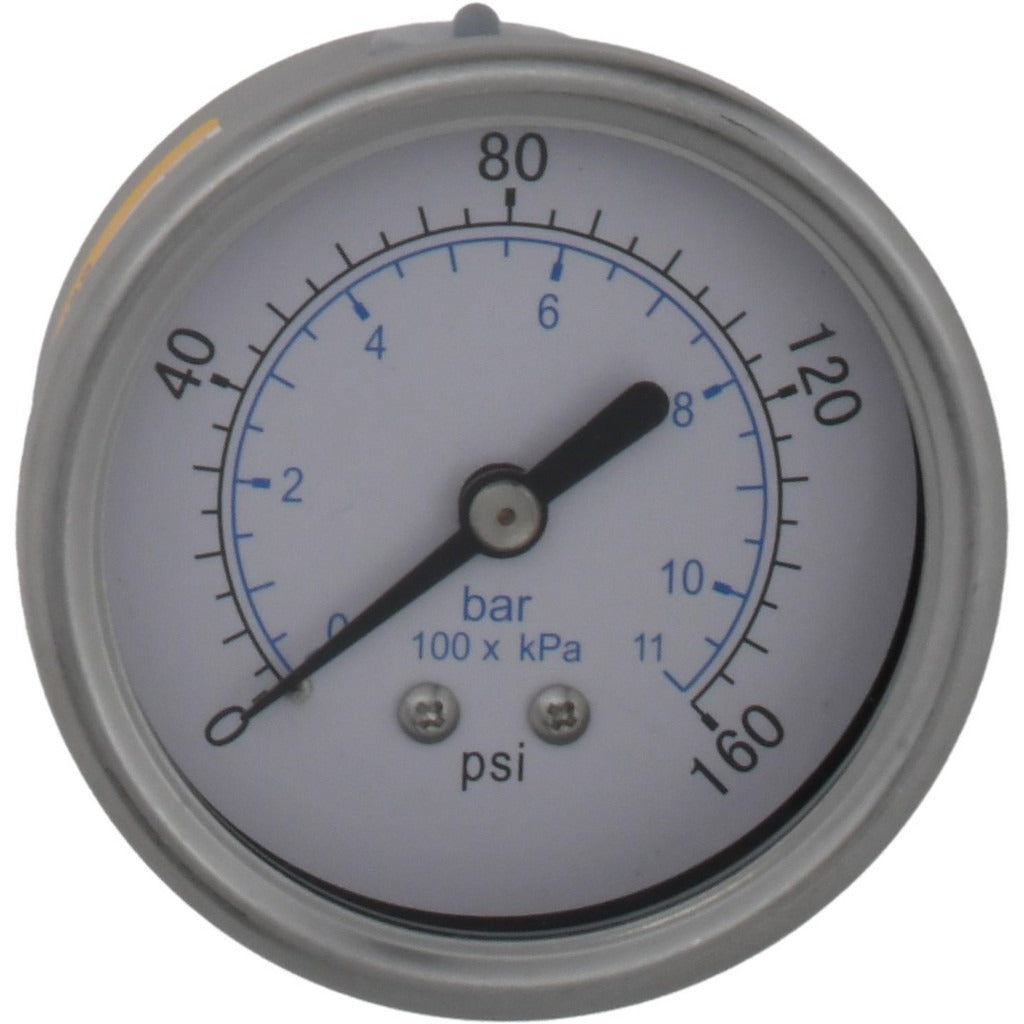

Value Collection 116AB25160D Pressure Gauge 160 Psi

Product Description

The VALUE COLLECTION 116AB25160D is an analog pressure gauge designed for measuring system pressure in plumbing, HVAC, and industrial fluid-handling applications. The gauge features a 2.5-inch dial with a 0 to 160 psi range and connects via a 1/4-inch NPT center back mount. The stainless steel case and stainless steel wetted parts, including the Bourdon tube, make it suitable for use with water, oil, and many corrosive media. Accuracy is rated at plus or minus 3-2-3 percent of scale across the full measurement range. Licensed plumbers, HVAC technicians, and pipefitters routinely install this gauge on pressurized systems requiring reliable local pressure indication.

This gauge is intended for residential and light commercial applications where a compact, dry-fill analog pressure gauge is required. Center back mount configuration positions the gauge flush against panels, manifolds, or pipe assemblies without side-entry fittings. The 1/4-inch NPT thread is a standard connection size found on boilers, chillers, pumps, compressors, pressure regulators, and water treatment systems. The non-liquid-filled design keeps installation simple and suits environments where glycerin or oil fill is not required.

Key Features

• 0 to 160 psi measurement range with analog Bourdon tube mechanism
• 2.5-inch dial diameter for clear local readout
• 1/4-inch NPT center back mount for panel and manifold installations
• Stainless steel case and stainless steel wetted parts for corrosion resistance
• Plus or minus 3-2-3 percent of scale accuracy across the full range
• Dry-fill, non-liquid-filled construction for straightforward service

Compatibility

Designed as a standard replacement or new-installation pressure gauge for any system using a 1/4-inch NPT center back mount connection and requiring a 0 to 160 psi measurement range.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician. Depressurize and isolate the system completely before removing an existing gauge or threading in a new one. Apply appropriate thread sealant or PTFE tape to the NPT threads in accordance with applicable plumbing codes such as the IPC. Do not over-tighten the fitting, as this can crack the gauge socket or distort the Bourdon tube.
