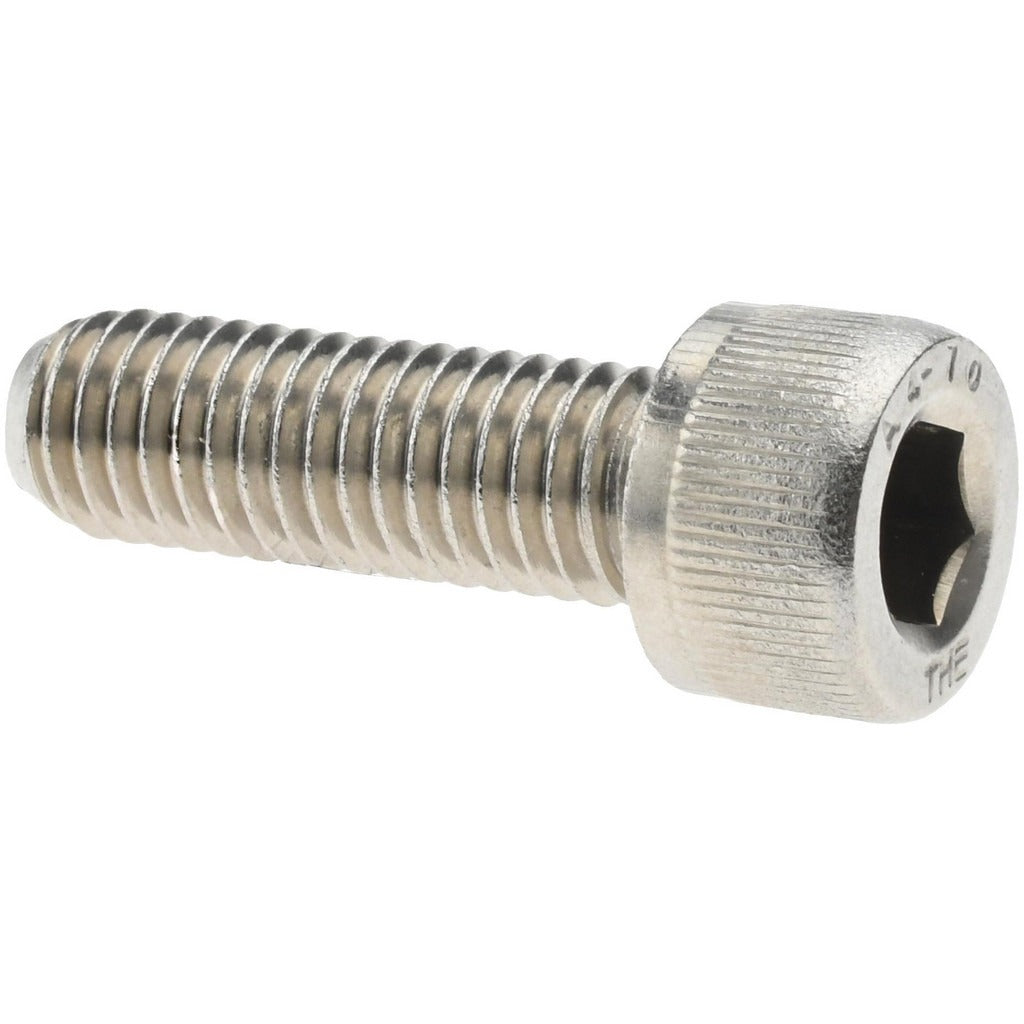

Value Collection 113586 M8x1.25 Socket Cap Screw 316 Ss

Product Description

The VALUE COLLECTION 113586 is a fully threaded hex socket cap screw in M8 x 1.25 thread size with a 25 mm length under head. Manufactured from grade 316 austenitic stainless steel (Material Grade A4) and left uncoated with a bright finish, this fastener delivers strong corrosion resistance in wet, marine, and chemically aggressive environments. The internal hex drive accepts a standard hex key for installation in confined spaces where a wrench cannot reach. Conforming to DIN 912, the screw meets a recognized international dimensional standard for socket head cap screws used across industrial, mechanical, and structural applications.

This screw is suited for general mechanical assembly, equipment fabrication, and maintenance work in industries where corrosion resistance is a priority. The M8 x 1.25 metric thread is common in machinery, pumps, pipe flanges, enclosures, and similar assemblies. The fully threaded shank provides consistent thread engagement along the entire length beneath the head, making it a practical choice where maximum holding strength over a short grip length is required. Sold individually per package with a minimum order quantity of 50 pieces.

Key Features

• M8 x 1.25 metric thread with 25 mm length under head for precise fitment in standard M8 tapped holes
• Fully threaded shank maximizes thread engagement for applications with short grip lengths
• Grade 316 austenitic stainless steel (A4) provides superior resistance to chlorides and corrosive media
• Bright uncoated finish maintains dimensional accuracy without added coating thickness
• Internal hex (socket) drive for use in tight clearance areas with a standard hex key or Allen driver
• Manufactured to DIN 912 standard for consistent dimensional tolerances

Compatibility

Designed as a standard DIN 912 metric socket head cap screw for use in any M8 x 1.25 tapped hole where a grade 316 stainless steel fastener is required.

Installation Notes

Installation is performed with a properly sized metric hex key or hex bit driver matched to the socket head drive. Verify that the mating tapped hole is clean, undamaged, and cut to M8 x 1.25 specification before threading the fastener. When working on pressurized systems or powered equipment, de-energize and depressurize the assembly before fastener removal or replacement. Avoid mixing stainless steel fasteners with dissimilar metals in applications where galvanic corrosion could compromise joint integrity.
