Value Collection 112369606 TPG321 Carbide Turning Insert

Product Description

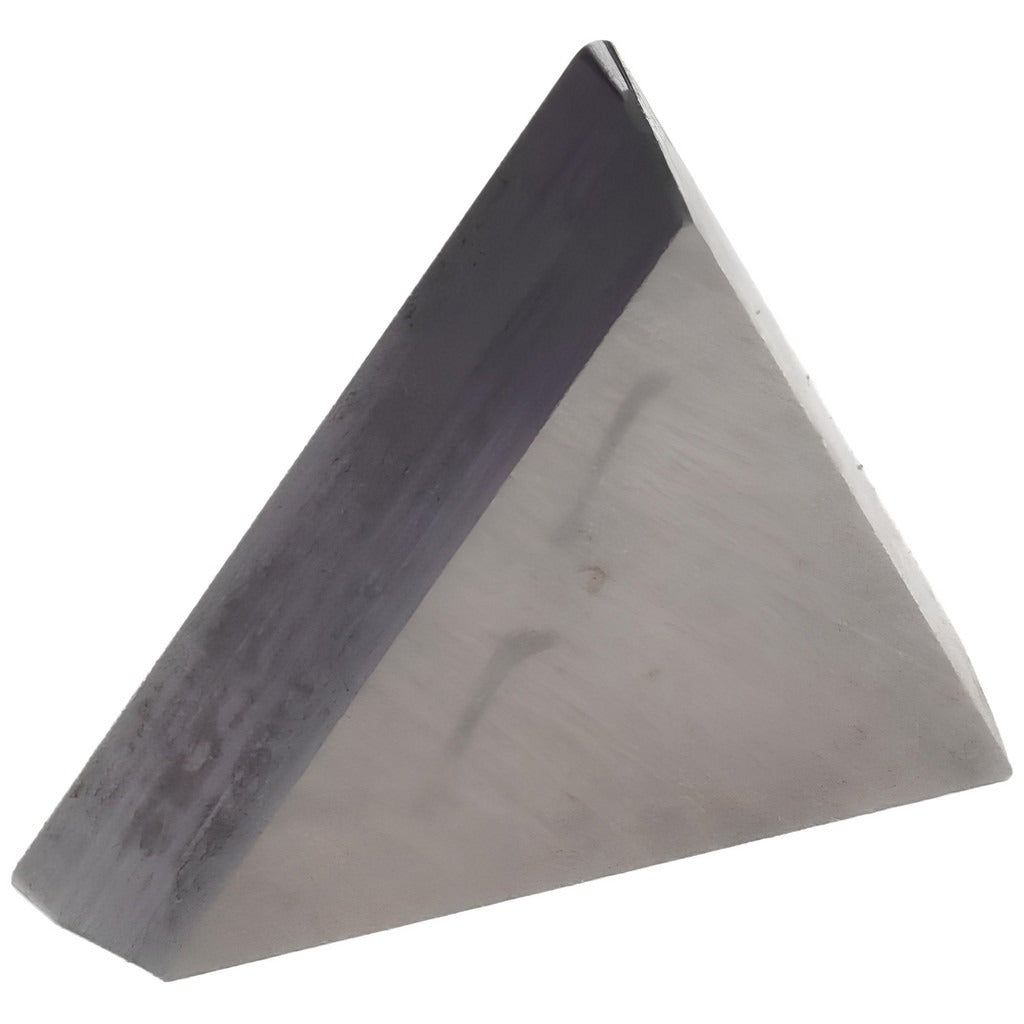

The VALUE COLLECTION 112369606 is a solid carbide turning insert designed for use on CNC lathes and manual turning centers. Conforming to ANSI insert code TPG321 and ISO code TPG160304, this triangular insert features a 60-degree included angle, an 11-degree relief angle, and a positive side clearance geometry. The inscribed circle measures 3/8 inches, insert thickness is 1/8 inch, and the corner radius is 1/64 inch. The flat-top chip breaker and manufacturer grade I55 (material grade C3) make this insert well suited for general-purpose turning of steel and ferrous workpiece materials.

This insert is intended for production turning operations in machine shops, tool rooms, and manufacturing environments. It is compatible with TPG-style toolholders that accept a triangular insert with clamp-style holding. The positive clearance geometry and carbide substrate suit moderate cutting speeds on P-class workpiece materials, including carbon and alloy steels. Each unit is sold individually; the minimum order quantity is 10 pieces.

Key Features

• Solid carbide construction in manufacturer grade I55, material grade C3
• 60-degree triangle insert shape with 11-degree relief angle and positive side clearance
• 3/8 inch inscribed circle with 1/64 inch corner radius for precise finish control
• Flat-top chip breaker design for predictable chip control on ferrous materials
• Clamp-style holding method compatible with standard TPG toolholders
• ANSI code TPG321 and ISO code TPG160304 for straightforward cross-referencing

Compatibility

Designed for use with TPG-style clamp-type toolholders accepting a triangular insert with ANSI code TPG321 or ISO code TPG160304. Intended for P-class workpiece materials including carbon and alloy steels.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine before seating or replacing the insert. Ensure the toolholder pocket and clamp are clean and free of chips before inserting. Verify clamp torque per the toolholder manufacturer specifications to prevent insert movement during cutting.
