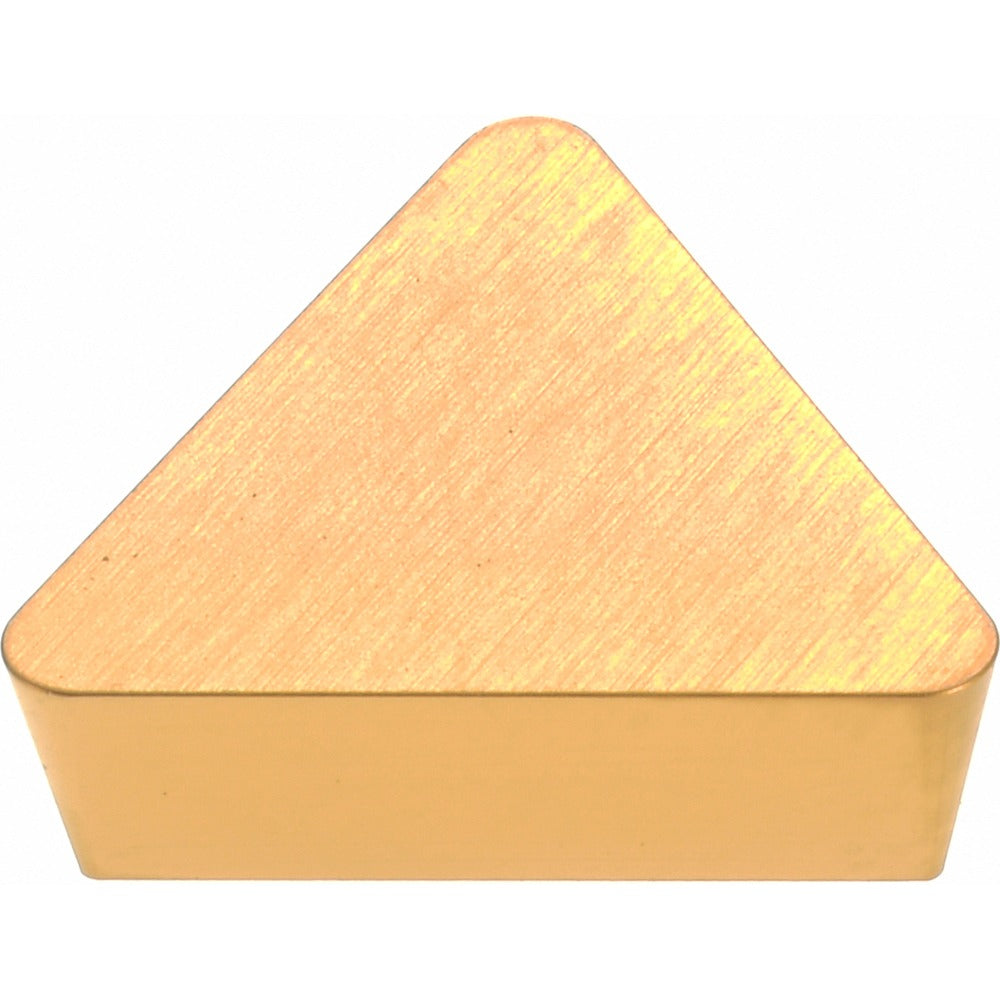

Value Collection 112369436 TPG222 Turning Insert Carbide

Product Description

The VALUE COLLECTION 112369436 is a solid carbide turning insert designed for use in CNC and manual turning operations on metal workpieces. Manufactured to the TPG222 ANSI standard with an ISO designation of TPG110308, this insert features a CVD-applied TiC and TiN coating for improved wear resistance and thermal stability. The 60-degree triangular shape with a positive side clearance and flat-top chip breaker geometry suits a range of general turning applications. Each insert measures 11 mm in length with a 1/4-inch inscribed circle and a 1/32-inch corner radius, making it a compact, precise cutting tool for production and job-shop environments.

This insert is suited for turning steel and stainless steel workpieces, consistent with its primary workpiece material codes P and M. It is used in applications requiring controlled chip formation on external and internal turning operations. The flat-top chip breaker designation indicates a design optimized for smooth, predictable cutting action without a molded chip-breaking groove. Material grades C5, C6, and C7 indicate suitability across a range of cutting speeds and feed rates common in industrial machining environments. Machinists and CNC operators in production shops and toolrooms are the typical installers of this insert type.

Key Features

• ANSI insert code TPG222 with ISO code TPG110308 for standardized toolholder compatibility
• CVD-applied TiC and TiN dual coating for enhanced wear resistance and surface hardness
• 60-degree triangle shape with positive side clearance for clean cutting geometry
• 1/32-inch corner radius for general-purpose turning on ferrous metals
• Flat-top chip breaker for predictable chip control without a molded breaker groove
• Material grades C5, C6, and C7 covering a broad range of machining conditions

Compatibility

Designed as an OEM-style replacement or direct-fit insert for toolholders accepting TPG222-style triangular carbide inserts with a clamp-style holding method and G-tolerance fit.

Installation Notes

Installation is performed by machinists or CNC operators using the appropriate clamp-style toolholder designed for TPG-series inserts. Ensure the machine is powered down and spindle is fully stopped before seating or replacing inserts. Inspect the toolholder pocket and clamp for debris or wear before installing a new insert. Follow the toolholder manufacturer's clamping specifications to ensure proper insert seating and secure retention during cutting.
