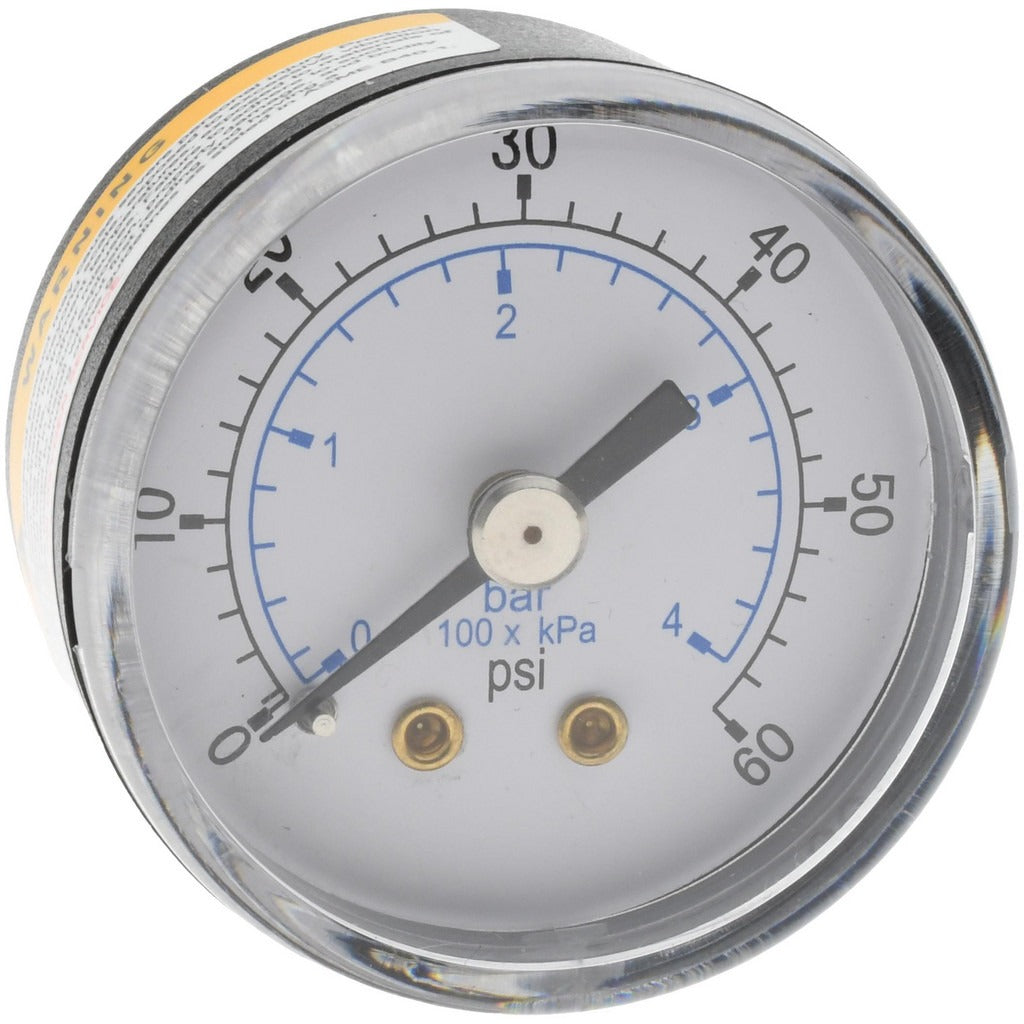

Value Collection 111CB15060 Pressure Gauge 60 Psi Npt

Product Description

The Value Collection 111CB15060 is a 1.5-inch dial analog pressure gauge rated for 0 to 60 psi service. It mounts via a 1/8-inch NPT center back connection and uses a bronze Bourdon tube with brass wetted parts for reliable readings in a wide range of fluid and gas applications. The ABS plastic case keeps the unit lightweight at 0.1 pounds. Accuracy is rated at plus or minus 3-2-3 percent of scale across the full range. This gauge is dry-filled, making it well suited for static or low-vibration installations where liquid filling is not required. Plumbers, HVAC technicians, and pipefitters install this gauge for system monitoring and commissioning tasks.

This gauge is sized for compact panel or line installations where a small dial profile is needed. The 1.5-inch dial diameter and 1/8-inch NPT back connection fit standard instrument taps commonly found on small pumps, pressure vessels, manifolds, and test ports. The center back mount orientation allows the dial to sit flush against a panel surface or pipe assembly. It is a practical choice for residential plumbing, light commercial HVAC, and general-purpose pneumatic or hydraulic monitoring where a direct-read analog indication is preferred over electronic sensors.

Key Features

• 0 to 60 psi pressure range suits low-pressure plumbing, HVAC, and pneumatic monitoring
• Plus or minus 3-2-3 percent of scale accuracy provides reliable readings across the dial
• 1/8-inch NPT center back mount fits standard instrument taps without adapters in most cases
• Bronze Bourdon tube and brass wetted parts offer corrosion resistance for water and air service
• ABS case construction keeps the gauge lightweight at 0.1 pounds
• Dry-fill design simplifies installation where vibration damping is not required

Compatibility

Designed as a general-purpose replacement or new-installation analog pressure gauge for systems with 1/8-inch NPT back-mount instrument ports rated to 60 psi.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or HVAC technician. Depressurize and isolate the system completely before removing an existing gauge or threading in this unit. Apply thread sealant tape or compound rated for the service fluid to the NPT threads before installation. Do not use the gauge body or dial as leverage when tightening; use a wrench on the hex fitting only.
