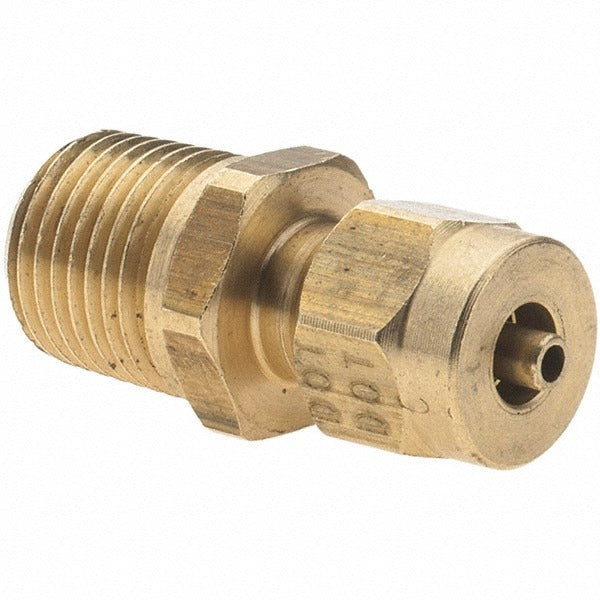

Value Collection 10651 Push-to-connect Tube Fitting

Product Description

The VALUE COLLECTION 10651 is a push-to-connect tube fitting designed for quick, tool-free connections in pneumatic and fluid transfer lines. The fitting accepts tubing with a 5/32 inch outside diameter and threads into ports sized to the 1/8-27 thread standard. Installation requires no ferrules, compression nuts, or additional hardware — the internal collet grips the tube on insertion and releases with a simple collar press. This type of fitting is commonly installed by HVAC technicians, plumbers, and industrial maintenance professionals working on low-pressure air, water, or instrumentation lines.

The 10651 fitting is suited for light-duty pneumatic circuits, instrumentation tubing runs, and small-bore fluid lines in both residential and light commercial applications. Its compact form factor makes it practical in tight panel spaces or equipment enclosures where standard compression fittings are difficult to access. Each package contains 10 fittings, making it convenient for service techs stocking a van or completing multi-point installations in a single visit.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and release
• 1/8-27 threaded male end for standard port connections
• Accepts 5/32 inch OD tubing
• Sold in a 10-piece package for multi-point or repeat installations
• Lightweight at 0.01 pounds per fitting, suitable for compact assemblies

Compatibility

Designed as a standard push-to-connect replacement fitting for pneumatic and fluid transfer systems using 5/32 inch OD tubing and 1/8-27 threaded ports.

Installation Notes

Installation is performed by licensed HVAC technicians, plumbers, or qualified maintenance personnel. Depressurize and isolate the line before removing any existing fitting or inserting this one. Ensure tubing is cut cleanly and squarely with no burrs before insertion, as irregular cuts can compromise the collet seal. Verify thread engagement is complete before restoring system pressure.
