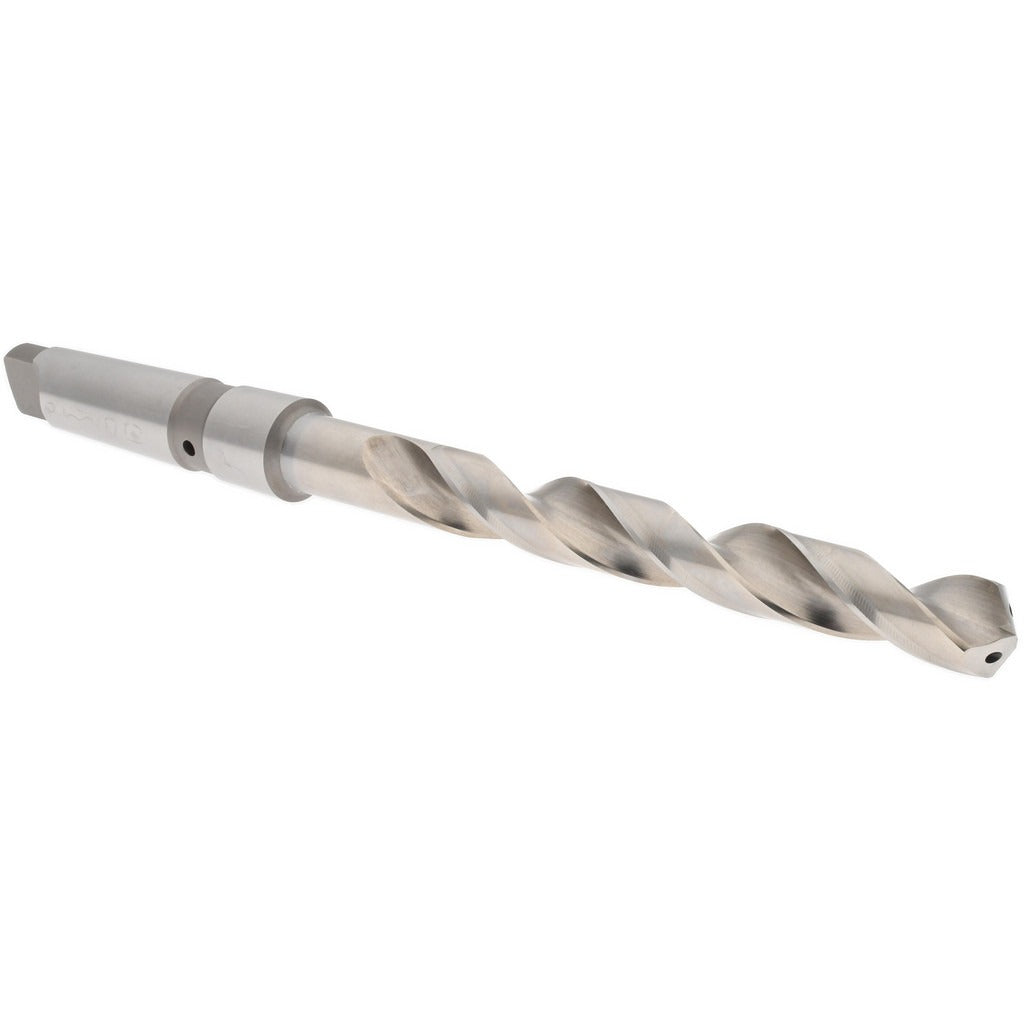

Value Collection 1057402 Taper Shank Drill Bit 23/32 in

Product Description

The VALUE COLLECTION 1057402 is a cobalt taper shank drill bit designed for drilling into hard and abrasive materials where standard high-speed steel bits fall short. Built with a 3MT (Morse Taper 3) shank, this bit seats directly into compatible drill press spindles and lathes without a separate chuck. The 118-degree standard point angle suits general-purpose work in steel, cast iron, stainless, and similar metals. With an overall length of 10.75 inches and a flute length of 6.125 inches, it handles deeper hole applications. Cutting direction is right hand with a regular spiral flute pattern and N-thinned web for reduced thrust at the point. Finish is bright/uncoated. This bit is installed by machinists, tool-and-die workers, and maintenance professionals.

This taper shank drill bit is suited for general-purpose drilling on drill presses, lathes, milling machines, and radial arm drills equipped with a Number 3 Morse Taper spindle or sleeve. Typical applications include drilling through-holes and blind holes in ferrous metals, alloy steels, and work-hardened materials in production and maintenance environments. Coolant-through capability supports continuous operation in higher-volume or higher-heat cutting scenarios. The cobalt construction retains hardness at elevated temperatures, making it a reliable choice where ordinary bits soften and lose edge life.

Key Features

• Cobalt tool material retains cutting hardness at elevated temperatures, extending edge life in hard and abrasive metals
• 3MT (Morse Taper 3) shank seats directly in compatible spindles without a separate chuck
• 118-degree standard point angle for general-purpose drilling in ferrous and alloy materials
• N-thinned web reduces point thrust and improves chip clearance at drill entry
• Coolant-through design supports continuous cutting in high-heat applications
• Regular spiral flute geometry promotes consistent chip evacuation throughout the full flute length

Compatibility

Designed for use in drill presses, lathes, and milling machines fitted with a Number 3 Morse Taper spindle or a 3MT sleeve adapter. No specific OEM model compatibility was provided in the product data.

Installation Notes

Always power down and lock out the machine before inserting or removing a taper shank bit. Clean both the spindle socket and the bit taper with a clean cloth before seating to ensure full contact and prevent runout. Drive the taper home firmly with a proper drift tool; never use a standard hammer directly on the bit shank. Follow the machine manufacturer torque and speed guidelines for the material and diameter being drilled.
