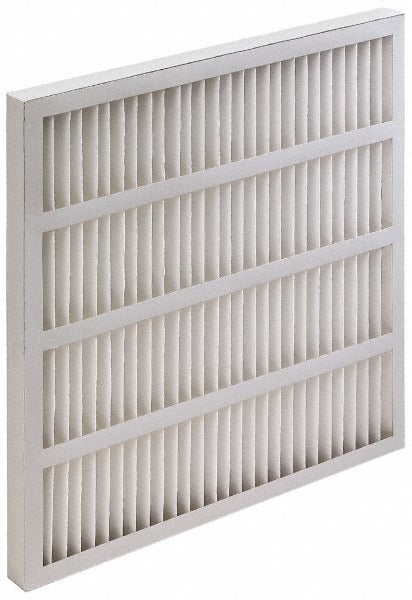

Value Collection 102-740-019 Pleated Air Filter Merv 8

Product Description

The VALUE COLLECTION 102-740-019 is a MERV 8 pleated air filter designed for residential and light commercial heating and air conditioning systems. Built with a synthetic filter media and a moisture-resistant beverage board frame, it captures 35 to 45 percent of airborne particles in the target size range per ASHRAE 52.2-2012 testing. The filter handles airflow up to 1,400 CFM at a maximum face velocity of 500 feet per minute, with an initial resistance of 0.26 inches water gauge. Nominal dimensions are 20 x 20 x 1-3/4 inches, with actual dimensions of 19-1/2 x 19-1/2 x 1-3/4 inches. A licensed HVAC technician or knowledgeable installer can fit this filter into standard filter slots sized for that nominal dimension.

This filter is suited for forced-air heating and air conditioning units where a MERV 8 efficiency level is specified. The vForm self-supported pleat design eliminates the need for external pleat supports, maintaining consistent media spacing across the full face area. The beverage board frame resists moisture exposure common in air handler environments. It is rated for continuous use up to 150 degrees F, making it compatible with both cooling and heating season operation in standard residential and light commercial applications.

Key Features

• MERV 8 rated per ASHRAE 52.2-2012 with 35 to 45 percent particle capture efficiency
• Synthetic filter media with exclusive vForm self-supported pleats for consistent airflow
• Moisture-resistant beverage board frame maintains structural integrity in humid conditions
• Rated up to 1,400 CFM airflow capacity at maximum 500 FPM face velocity
• Low initial resistance of 0.26 inches water gauge minimizes system static pressure penalty
• UL 900 listed; rated for use up to 150 degrees F

Compatibility

Designed for use with heating and air conditioning units requiring a 20 x 20 x 1-3/4 inch nominal pleated filter slot.

Installation Notes

Installation should be performed by a qualified HVAC technician. Power down the air handler or furnace at the disconnect or breaker before servicing the filter compartment. Insert the filter with the airflow direction arrow on the frame aligned toward the blower. Follow equipment manufacturer guidelines and local mechanical codes for filter replacement intervals.
