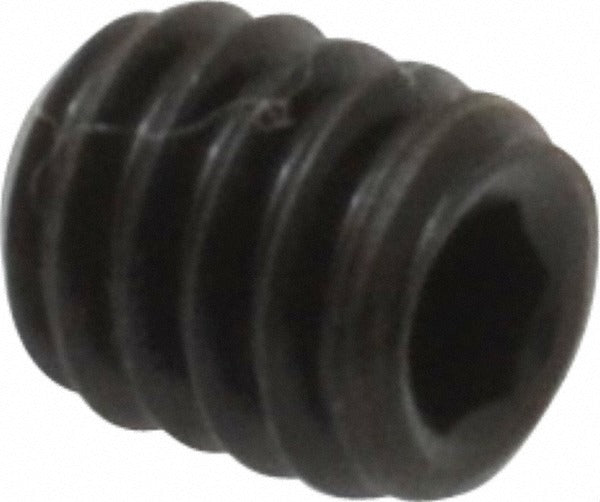

Value Collection 101195PR Set Screw 8-32 Cup Point Grade 8

Product Description

The VALUE COLLECTION 101195PR is a headless set screw designed for mechanical assemblies where a flush or recessed fastener is required. Sized at 8-32 UNC thread with a 3/16-inch overall length, this cup point set screw uses a 5/64-inch hex key drive for installation. The cup point geometry bites into the mating surface to resist rotation and axial movement under load. Manufactured from Grade 8 alloy steel, the fastener meets ASME/ANSI B18.3 and ASTM F912 standards, making it appropriate for moderate-to-high clamping-force applications found in industrial and mechanical systems.

This set screw is suited for use in shaft collars, pulleys, gears, knobs, and other mechanical components where the fastener must sit below or flush with the surface. It is commonly used in light machinery, HVAC blower assemblies, fan hubs, and general industrial equipment. The cup point style is a standard choice when a permanent or semi-permanent bite into a shaft or seating surface is acceptable. Sold individually with a minimum order quantity of 100 pieces, this SKU is appropriate for maintenance stock, shop inventory, or production-line consumption.

Key Features

• Cup point geometry provides positive engagement and resists loosening under vibration
• Grade 8 alloy steel construction for high tensile and torsional strength
• 5/64-inch hex key drive for installation in tight or recessed locations
• Meets ASME/ANSI B18.3 and ASTM F912 fastener standards
• 8-32 UNC thread for compatibility with standard fractional-inch tapped holes
• Headless design allows flush or below-surface installation

Compatibility

Designed as a standard 8-32 UNC cup point set screw for use in any tapped hole or threaded insert meeting the 8-32 thread specification per ASME/ANSI B18.3.

Installation Notes

Installation requires a 5/64-inch hex key or Allen driver; power-down all associated equipment and de-energize or lock out the system before servicing any component this fastener secures. Apply appropriate thread-locking compound if vibration resistance beyond the cup point engagement is required. Do not exceed the torque range appropriate for Grade 8 alloy steel at this thread size, and inspect the mating shaft or seating surface for damage before installation.
