Value Collection 10110241 Galvanized Round Pipe 10 in Id

Product Description

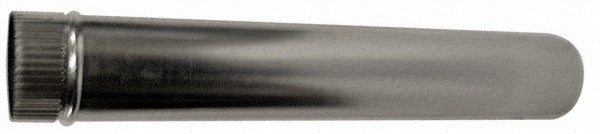

The VALUE COLLECTION 10110241 is a galvanized steel round pipe section used in low-pressure air distribution and ventilation ductwork. Measuring 10 inches in inside diameter and 24 inches in overall length, this straight pipe section serves as a core component in trunk-line and branch-run duct assemblies. The galvanized steel construction resists corrosion from condensation and normal HVAC airflow conditions. At 3.23 pounds, it is manageable for single-technician handling during overhead or in-wall installation. Sheet metal contractors, HVAC installers, and mechanical contractors are the primary installers of this type of fitting.

This pipe section is suited for residential and light commercial forced-air HVAC systems where round duct distribution is specified. Common applications include supply and return air trunk runs, exhaust ventilation, and makeup air systems. The 10-inch diameter is a frequently used size in medium-to-large residential systems and small commercial applications where static pressure requirements call for larger duct diameter. The 24-inch length makes it practical for short connector runs, transitions between fittings, or filling measured gaps in a duct layout.

Key Features

• 10-inch inside diameter suits medium and large residential or light commercial duct systems
• 24-inch overall length provides a manageable, standard section for layout flexibility
• Galvanized steel construction provides corrosion resistance in typical HVAC environments
• Standard gauge wall thickness appropriate for low-pressure forced-air ductwork
• Lightweight at 3.23 pounds for easier single-person overhead installation

Compatibility

Designed as a standard round duct pipe section compatible with 10-inch round duct fittings, connectors, collars, and take-offs used in low-pressure residential and light commercial forced-air HVAC duct systems.

Installation Notes

Installation is performed by licensed sheet metal contractors or HVAC technicians in accordance with SMACNA duct construction standards and local mechanical codes. Power down and lock out the air handling unit before connecting or modifying any ductwork section. Joints should be secured with sheet metal screws and sealed with UL 181-rated mastic or foil tape to meet energy code requirements. Do not use this pipe section in high-pressure or high-velocity duct systems beyond its rated gauge capacity.
