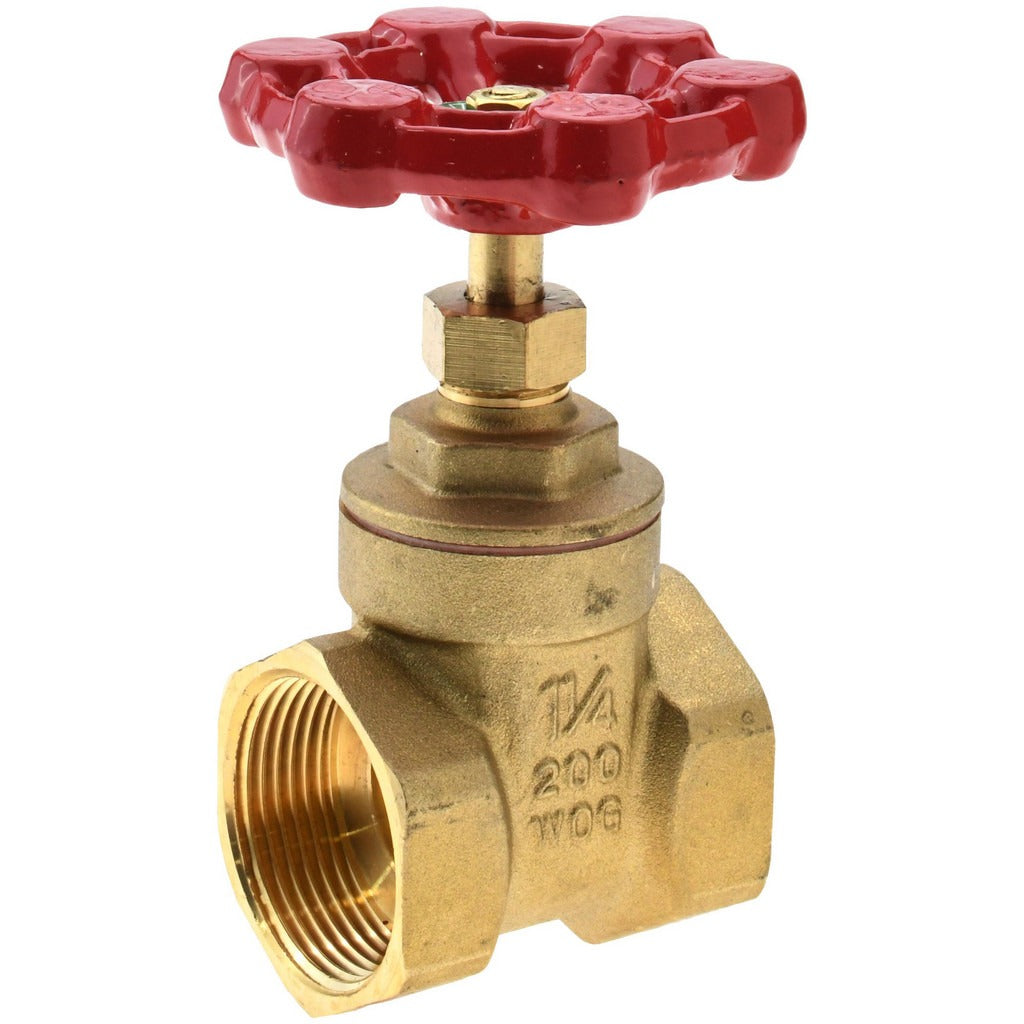

Value Collection 100-406NL Compact Brass Gate Valve 1-1/4 in

Product Description

The VALUE COLLECTION 100-406NL is a compact gate valve designed for inline shutoff service in plumbing, fluid, and gas distribution systems. Built with a brass body and wedge disc, it provides reliable full-bore flow control in a space-saving footprint. The screw-over bonnet design allows field access to internal components for inspection or repacking. Rated at Pressure Class 150, this valve suits a wide range of residential and light commercial piping applications. Licensed plumbers and pipefitters install this type of valve during new construction and retrofit work where a compact form factor is required.

This valve is sized for 1-1/4 inch IPS pipe connections and is rated for use with water, oil, and gas service. The IPS (Iron Pipe Size) end connection is standard across most residential and commercial piping systems, making it a straightforward drop-in for gate valve replacements or new branch installations. Its compact body profile is particularly useful in tight mechanical spaces, utility chases, and manifold assemblies where full-size gate valves would not fit.

Key Features

• Compact gate valve body keeps overall installed length to a minimum in confined spaces
• Brass body construction provides corrosion resistance for water, oil, and gas service
• Wedge disc design delivers positive shutoff with minimal seat wear over time
• Screw-over bonnet allows field repacking without removing the valve from the line
• 1-1/4 inch IPS end connections match standard residential and commercial pipe sizing
• Pressure Class 150 rating suits typical building service piping pressures

Compatibility

Rated for use with water, oil, and gas media. Designed as an OEM-style replacement or new-install gate valve for 1-1/4 inch IPS piping systems in residential and light commercial plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with IPC and applicable local codes. Shut off the upstream supply and relieve system pressure before removing any existing valve or making new connections. Ensure pipe threads are clean and use appropriate thread sealant compatible with the service media before tightening. Gate valves of this type are intended for full-open or full-closed service and should not be used as throttling devices, as partial operation accelerates disc and seat wear.
