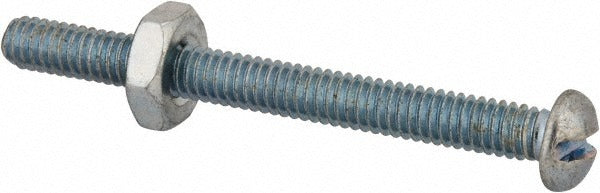

Value Collection 0828MSRNH 8-32 Round Head Slotted Machine Screw

Product Description

The VALUE COLLECTION 0828MSRNH is an 8-32 unified coarse thread machine screw with a round head and slotted drive. The fastener measures 1.75 inches in length under head and is manufactured from steel with a zinc finish for basic corrosion resistance. It conforms to ASME B18.6.3 and SAE J82 standards. This screw is a standard inch-series fastener used across a wide range of light mechanical assemblies, electrical enclosures, and equipment panels. Installation is performed by general mechanics, electricians, and HVAC technicians during equipment assembly or field repair work.

This machine screw is suited for use in light-duty mechanical assemblies where a slotted round head profile is required. Common applications include securing sheet metal panels, electrical junction box covers, control board mounting, and similar tasks where a standard 8-32 thread engagement is specified. The zinc finish provides modest protection in dry indoor environments. This fastener ships in a minimum order quantity of 100 pieces per order.

Key Features

• 8-32 unified coarse thread for broad fastener compatibility
• Round head profile keeps the head low-profile against the mating surface
• Slotted drive accepts standard flat-blade screwdrivers
• Steel construction with zinc finish for basic indoor corrosion resistance
• Conforms to ASME B18.6.3 and SAE J82 standards
• No washer — head seats directly against the mating surface

Compatibility

Designed as a standard 8-32 inch-series machine screw for general mechanical, electrical, and HVAC panel assembly applications requiring a round head slotted fastener per ASME B18.6.3.

Installation Notes

Install with a flat-blade screwdriver sized to fit the slotted head recess to avoid cam-out and head damage. Ensure the mating tapped hole or nut thread is 8-32 before driving the fastener. Do not overtighten — steel screws in thin sheet metal or plastic inserts are susceptible to thread stripping. For electrical enclosure work, follow applicable NEC guidelines for securing covers and components.
