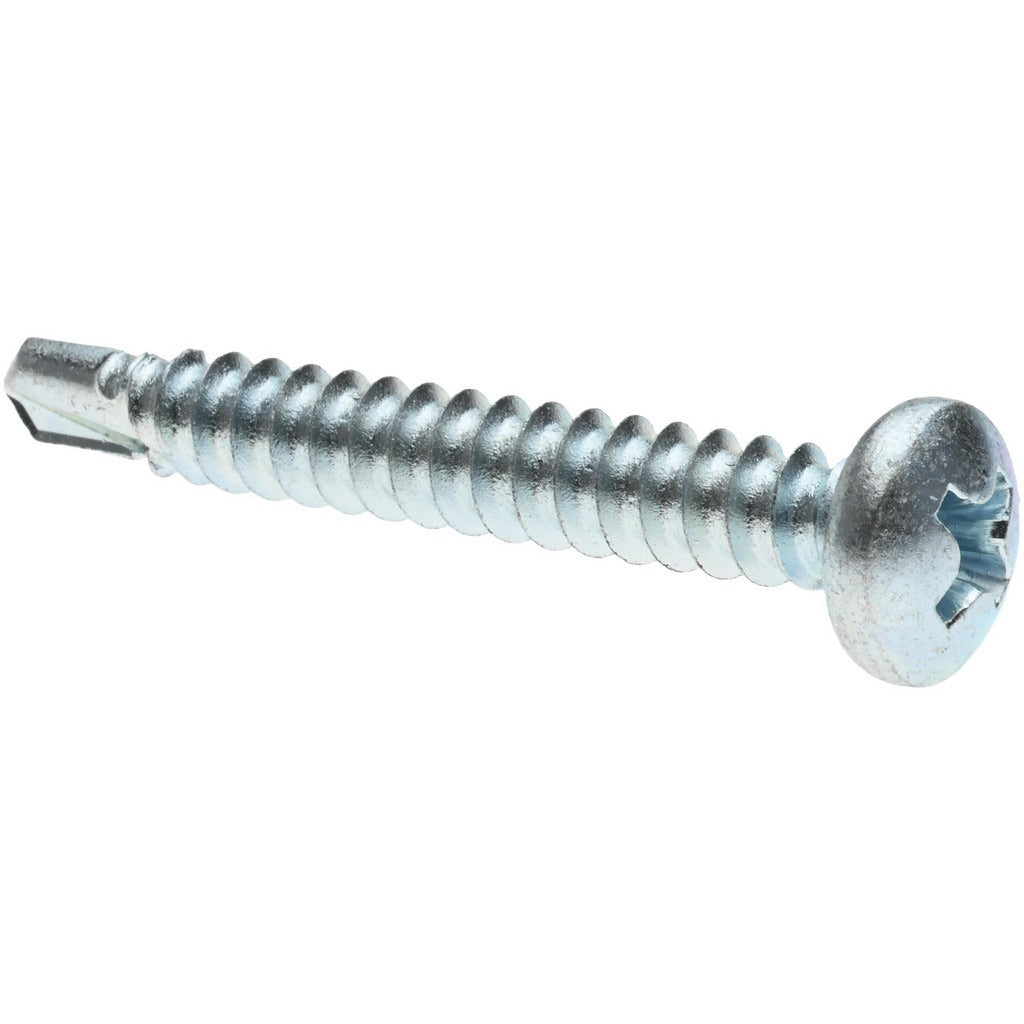

Value Collection 0820KPP No.8 Pan Head Phillips Self Drilling Screw

Product Description

The VALUE COLLECTION 0820KPP is a No. 8 pan head self drilling screw designed for fast, reliable fastening in metal-to-metal and light-gauge sheet metal applications. Featuring a Phillips drive and a No. 2 drill point, this screw bores its own pilot hole and taps the mating material in a single operation, eliminating the need for pre-drilling. The 1.25-inch length under head is measured from the underside of the head to the drill tip. The zinc-plated finish provides corrosion resistance in standard indoor environments. Fabricated from AISI 1016/1024 grade steel, this screw meets ASME B18.6.3, ASME B18.6.4, and SAE J78 dimensional and performance standards. It is sold in minimum order quantities of 100 pieces.

This screw is suited for light commercial and residential construction, HVAC ductwork assembly, metal framing, and general sheet metal fabrication. The pan head profile offers a low-profile bearing surface with good drive engagement, making it a common choice for securing thin gauge metal panels and duct sections. Installers working in production environments will benefit from the self drilling action, which reduces setup time and fastener count per joint.

Key Features

• No. 2 drill point self drills and taps in one pass, no pre-drilling required
• Pan head profile provides a wide bearing surface and positive Phillips drive engagement
• AISI 1016/1024 steel construction for reliable strength in light-gauge fastening applications
• Zinc-plated finish for corrosion resistance in standard indoor environments
• Meets ASME B18.6.3, ASME B18.6.4, and SAE J78 standards
• Inch measurement system, 1.25-inch length under head

Compatibility

Designed as an OEM-style replacement or standard fastener for light-gauge sheet metal assemblies, HVAC ductwork, and metal framing applications requiring a No. 8 pan head self drilling screw.

Installation Notes

Installation is performed with a power drill or screw gun fitted with a No. 2 Phillips bit. Ensure the workpiece is secured before driving to prevent movement during drilling. Avoid over-torquing, which can strip the drive recess or cause the screw to spin out of the material. Follow applicable building codes and manufacturer guidelines for fastener spacing in structural or mechanical applications.
