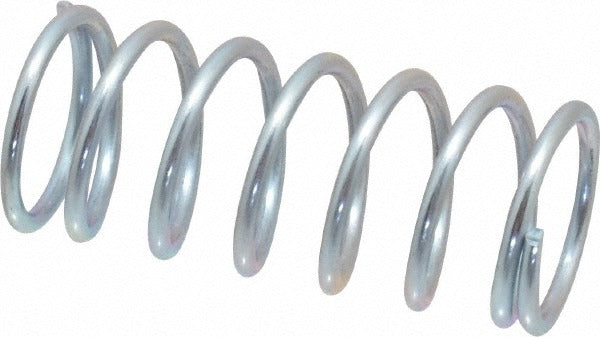

Value Collection 06813174 Compression Spring 0.85 in Od

Product Description

The VALUE COLLECTION 06813174 is a compression spring suited for light-to-medium mechanical assemblies where controlled resistance and return force are required. With an outside diameter of 0.85 inches and a free length of 2 inches, this spring delivers a spring rate of 21.11 pounds per inch and a maximum work load of 25.55 pounds. Wire diameter is 0.08 inches. The solid height measures 0.648 inches, and the recommended hole diameter for installation is 0.875 inches. Mechanical technicians, machine builders, and maintenance professionals working with industrial or commercial equipment select this type of spring for reliable, repeatable compression performance.

This compression spring is appropriate for use in general industrial machinery, tooling fixtures, valves, actuators, and similar mechanical assemblies requiring a compact compression element. Its dimensions and load rating fit a broad range of light-duty mechanical applications. It is sold in a package quantity of 5 units, making it practical for service shops and maintenance teams that keep common spring sizes in stock.

Key Features

• Outside diameter of 0.85 inches fits standard bore and housing configurations
• Spring rate of 21.11 pounds per inch provides consistent, predictable deflection response
• Maximum work load rated at 25.55 pounds for light-to-medium duty applications
• Free length of 2 inches with a compact solid height of 0.648 inches
• Wire diameter of 0.08 inches for defined coil pitch and load characteristics
• Packaged in quantities of 5 for maintenance and service stock convenience

Compatibility

Designed as a general-purpose compression spring suitable for industrial machinery, mechanical assemblies, valves, and tooling fixtures that require a spring with 0.85-inch outside diameter and 2-inch free length.

Installation Notes

Compression springs of this type are installed by mechanical technicians and maintenance professionals using standard hand tools. Before replacing a spring in any powered assembly, de-energize the equipment and relieve any stored mechanical or pneumatic pressure. Ensure the bore or housing diameter is compatible with the 0.875-inch recommended hole diameter to prevent binding or misalignment during operation. Confirm the application load does not exceed the 25.55-pound maximum work load rating.
