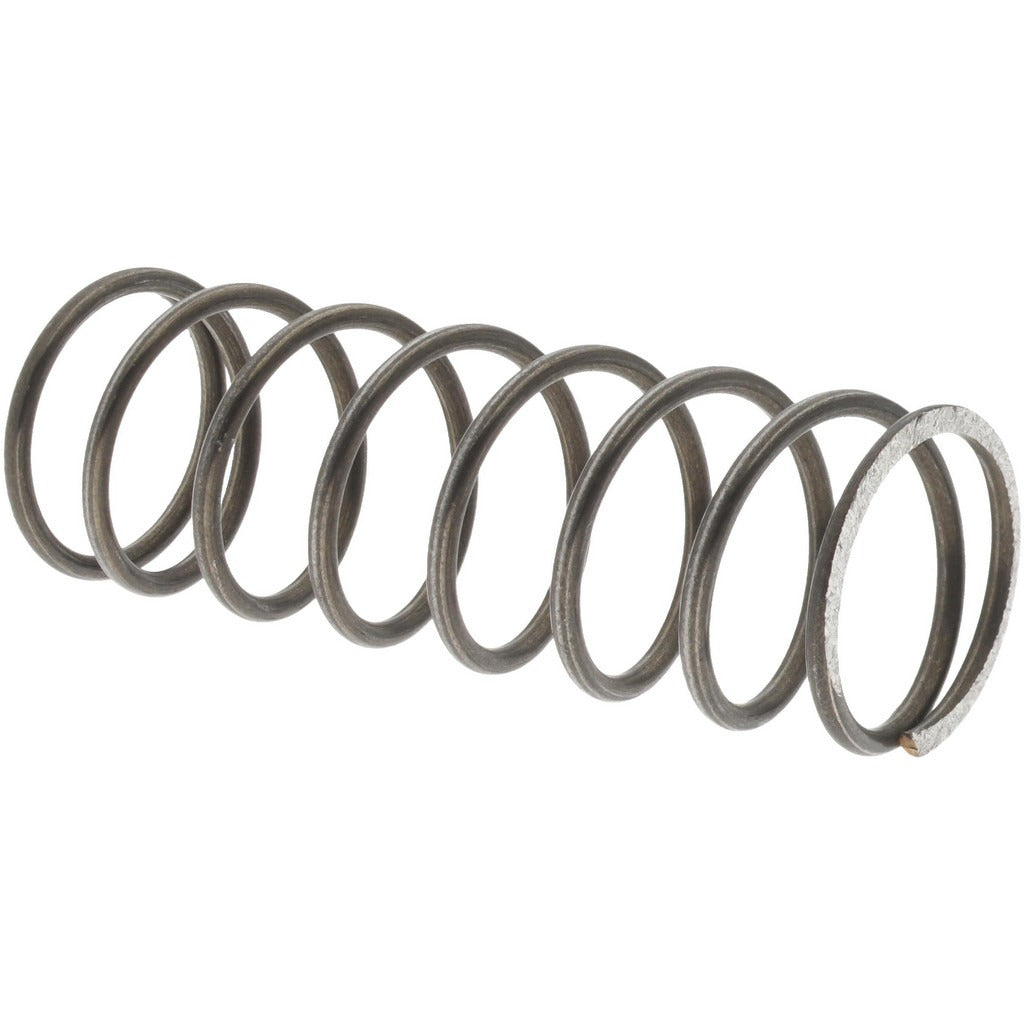

Value Collection 06813117 Compression Spring 0.85in Od

Product Description

The VALUE COLLECTION 06813117 is a compression spring suited for general mechanical and industrial applications where controlled resistance and return force are required. It features an outside diameter of 0.85 inches, a free length of 2.5 inches, and a wire diameter of 0.072 inches. The spring delivers a maximum work load of 19.06 pounds and a spring rate of 11.59 pounds per inch, making it a straightforward selection for mid-range load applications. Maintenance technicians, machine builders, and trade professionals working with mechanical assemblies, valve mechanisms, or actuator systems will find this spring a reliable stock component.

This compression spring is intended for use in residential and light commercial mechanical assemblies where a 0.85-inch outside diameter fits the design envelope. Its solid height of 0.653 inches and compatibility with a hole diameter of 0.875 inches make it well suited for guided spring installations in housings, bores, or over a rod. It is commonly specified in HVAC damper linkages, valve return assemblies, plumbing components, and general equipment repair scenarios where a standard off-the-shelf compression spring is required.

Key Features

• Outside diameter of 0.85 inches fits standard 0.875-inch bore or hole applications
• Spring rate of 11.59 pounds per inch provides predictable, linear load response
• Maximum work load of 19.06 pounds suitable for mid-range mechanical assemblies
• Wire diameter of 0.072 inches balances flexibility and load capacity
• Solid height of 0.653 inches limits compression travel and prevents coil bind damage
• Sold in a package quantity of 5, with no minimum order above 1 unit

Compatibility

Designed as a general-purpose OEM-style replacement or stock compression spring for mechanical assemblies requiring an 0.85-inch outside diameter and 2.5-inch free length with a spring rate near 11.59 pounds per inch.

Installation Notes

Compression springs of this type are installed by maintenance technicians and mechanical trades working on valve, actuator, and linkage assemblies. Always relieve system pressure and de-energize any associated electrical or pneumatic components before servicing the assembly. Confirm the installed height, bore diameter, and load requirements match the spring specifications before finalizing installation. Avoid compressing the spring beyond its solid height of 0.653 inches during operation.
