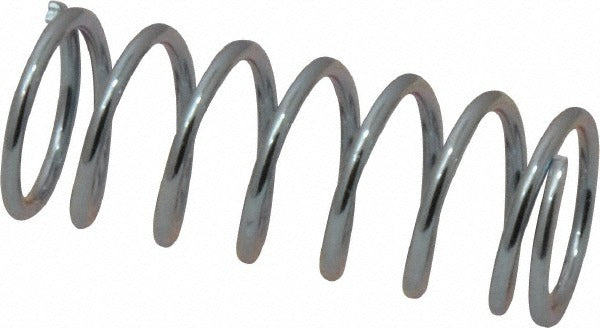

Value Collection 06812473 Compression Spring 0.6in Od

Product Description

The VALUE COLLECTION 06812473 is a helical compression spring suited for general mechanical and industrial assembly applications. It features a 0.6 inch outside diameter and a 1.5 inch free length, with a wire diameter of 0.062 inches. The spring delivers a rated spring rate of 20.24 pounds per inch and supports a maximum work load of 17.51 pounds. Solid height measures 0.541 inches. This type of spring is commonly installed by maintenance technicians, mechanical assemblers, and industrial MRO professionals working on tooling, fixtures, actuators, valves, and general hardware assemblies.

This compression spring is appropriate for light-duty mechanical applications requiring consistent return force within a compact envelope. The 0.6 inch outside diameter fits inside a bore or hole diameter up to 0.625 inches. With a free length of 1.5 inches and a solid height of 0.541 inches, it offers adequate travel range for most standard compression applications in both residential and light industrial equipment contexts.

Key Features

• 0.6 inch outside diameter fits bores up to 0.625 inches
• 1.5 inch free length with 0.541 inch solid height
• Wire diameter of 0.062 inches for consistent coil geometry
• 20.24 pounds per inch spring rate for predictable load response
• Maximum work load rated at 17.51 pounds
• Sold in packages of 10 units

Compatibility

Designed as a general-purpose OEM-style replacement compression spring for light mechanical assemblies, fixtures, valves, and actuator applications requiring a 0.6 inch outside diameter helical compression spring.

Installation Notes

Installation is performed by qualified mechanical technicians or MRO personnel. Always de-energize or depressurize the host assembly before removing or replacing compression springs. Confirm that the bore or seat diameter accommodates the 0.625 inch maximum hole diameter and that axial clearance supports the full free length of 1.5 inches. Do not exceed the rated maximum work load of 17.51 pounds during assembly or operation.
